Model – 65023- Shear Beam Load Cell

Title :- Model – 65023- Shear Beam Load Cell

Brand :- Sensortronics

DESCRIPTION

Model 65023 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications.

It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with ATEX, UKCA and FM approval.

Nickel plating and full environmental sealing assures long term reliability. A stainless steel option is available for the lb versions for use in harsh or corrosive environments.

Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable
extension is achieved by feeding this voltage into the appropriate electronics.

FEATURES

• Rated capacities of 250 to 20,000 pounds, 125 to
10,000 kg
• “Thru” or “threaded” load hole configurations
• Low sensitivity to axial loads
• Low profile (ultra-low-profile available in 1000 to 2500
pound ranges)
• Sensorgage™ sealed to IP67 standards
• Factory Mutual System Approved for Classes I, II, III;
Divisions 1 and 2; Groups A through G.
• Non-incendive ratings (without barriers!).
• Trade certified for NTEP Class III: 5000d, IIIL: 10000d
and OIML R-60 3000d available

  Optional

– Hazardous area approval
– Stainless steel versions available

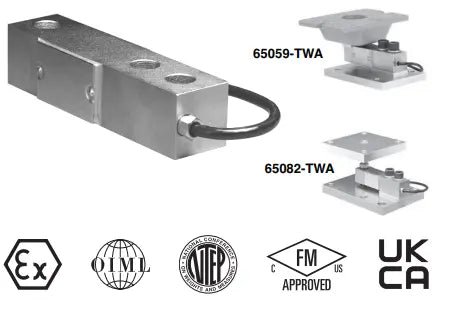

– 65059 TWA companion weighing assemblies available
– EDOC product appearance will differ from the
photograph due to coating

APPLICATIONS
• Floor scales
• Tank weighing
• Bin and hopper weighing
