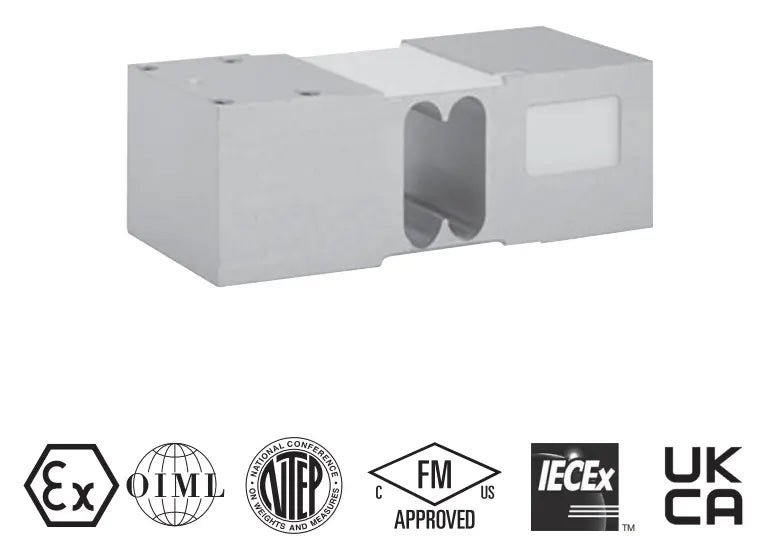

Model- 1260 Aluminum High Capacity Single-Point Load Cell
Tedea-Huntleigh Model 1260 Aluminum High-Capacity Single-Point Load Cell – OIML & NTEP approved, IP66-rated, high-accuracy load cell for large platform scales, bench scales, check weighing, and hanging scales. Rugged, humidity-resistant, ATEX & FM certified for hazardous environments, with metric & UNC thread options.
$90.54
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $85.54 |
| 11 - 15 | $10.00 | $80.54 |
| 16 - 20 | $15.00 | $75.54 |
Payment Methods:
Description
Title :- Model- 1260 Aluminum High Capacity Single-Point Load Cell
Brand :- Tedea-Huntleigh
DESCRIPTION
Model 1260 is a high-performance, high-capacity single-point load cell designed for direct mounting of large platforms.
Its rugged construction offers high resistance to side forces, making it suitable for a wide range of weighing applications, including bench scales and check weighing.
A special humidity-resistant protective coating assures long-term stability over the entire compensated temperature range.
For hazardous environments this load cell has an ATEX and FM approval.
The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into appropriate electronics.
FEATURES
• Capacities: 50–635 kg
• Aluminum construction
• Single-point 600 × 600 mm platform
• OIML R60 and NTEP approved
• IP66 protection
• Available with metric and UNC threads
• Optional
– FM Approval, ATEX, IECEx and UKCA
certifications available.
APPLICATIONS
• Large platform scales
• Hanging scales
• Check weighing
