Model- 355 Welded, Hermetically Sealed Load Cell
Tedea-Huntleigh Model 355 Bending Beam Load Cell – OIML & NTEP approved, IP68-rated, high-accuracy stainless steel load cell for weighing, packing machines, loss-in-weight feeders, belt weighers, and marine scales. Hermetically sealed, ATEX, FM & IECEx certified for harsh and moisture-intensive environments.
Price range: $91.43 through $196.28
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model- 355 Welded, Hermetically Sealed Load Cell
Brand :- Tedea-Huntleigh
DESCRIPTION

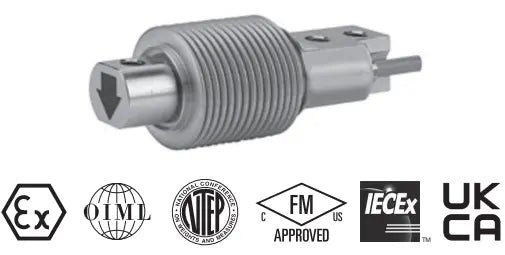

Model 355 is a welded bending load cell manufactured in stainless steel. It is hermetically sealed against moisture and has a polyurethane shielded cable, enabling it to function in demanding environments while maintaining full operating specifications.
With its low profile, high accuracy and hermetic sealing, the Model 355 load cell is ideal for applications such as low-profile platforms, weighing and packing machines, conversion of mechanical and varied other applications where sealed cells are required. For hazardous
environments, this load cell is available with FM Approval, ATEX, IECEx and UKCA certifications as an option.
Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in the lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
FEATURES
• Capacities: 5–500 kg
• Stainless steel construction
• OIML R60 and NTEP approved
• IP68 protection
• Optional
– FM Approval, ATEX, IECEx and UKCA certifications available.
MAIN APPLICATIONS
• Low-profile platforms
• Loss-in-weight feeders
• Marine and hybrid scales
• Belt weighers
• Demanding food industry environments
