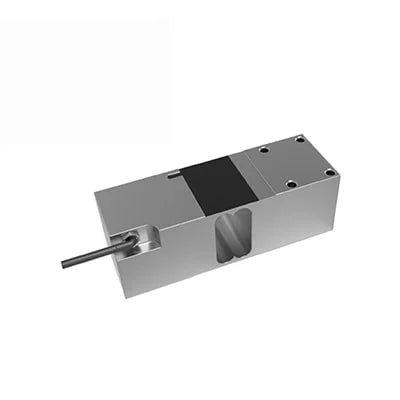

50kg Load Cell – Model 1260 Aluminum High-Capacity Single-Point Load Cell
$440.78
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $435.78 |
| 11 - 15 | $10.00 | $430.78 |
| 16 - 20 | $15.00 | $425.78 |
Payment Methods:
Description
Robust, High-Capacity Load Cell for Large Platform Weighing
The 50kg Load Cell – Model 1260 from Tedea-Huntleigh is a high-performance single-point load cell designed for direct mounting on large platforms. Built for industrial and commercial weighing applications, this aluminum load cell delivers reliable, repeatable, and precise measurements even under high-capacity demands.
Key Features & Benefits:
- Capacity: 50 kg (available in 50–635 kg variants)
- Construction: Lightweight yet durable aluminum for long-lasting performance
- Platform Compatibility: Single-point 600 × 600 mm – ideal for large-scale platforms
- Cable Length: 3 m – convenient for versatile installations
- Environmental Protection: IP66 rated, fully protected against dust and water ingress
- Precision Engineering: Ensures accurate readings for high-capacity industrial applications
Applications:
- Large bench and platform scales
- Industrial process weighing
- Packaging and commercial weighing systems
Limitations:
- Not ATEX/FM approved – not suitable for explosive or hazardous environments
Smart Tip: The Model 1260 is perfect for applications requiring a lightweight, high-capacity load cell that doesn’t compromise accuracy or durability.
Description
Model 1260 is a high-performance, high-capacity single-point load cell designed for direct mounting of large platforms.
Its rugged construction offers high resistance to side forces, making it suitable for a wide range of weighing applications, including bench scales and check weighing.
A special humidity-resistant protective coating assures long-term stability over the entire compensated temperature range.
For hazardous environments this load cell has an ATEX and FM approval.
The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into appropriate electronics.
Features
- Capacities: 50–635 kg
- Aluminum construction
- Single-point 600 × 600 mm platform
- OIML R60 and NTEP approved
- IP66 protection
- Available with metric and UNC threads
Options
- ATEX, FM and IECEx approvals available
Certifications
| Parameter | Value | Unit | ||
|---|---|---|---|---|
| Rated capacity (kg) | 50, 75, 100, 150, 200, 250, 300, 500, 635, 1000 | kg | ||
| NTEP/oiml accuracy class | NTEP | Non-Approved | C3 | |
| Max. no. of intervals (n) | 5000 single | 1000 | 3000 | |
| Rated output R.O | 2 | mV/V | ||
| Rated output tolerance | 0.2 | ±%mV/V | ||
| Zero balance | 0.2 | ±%FSO | ||
| Ultimate over load | 300 | % of R.C | ||
| Excitation voltage | 10 | VDC or VAC RMS | ||
| Max. excitation voltage | 15 | VDC or VAC RMS | ||
| Input resistance | 415±15 | Ω | ||
| Output resistance | 350±3 | Ω | ||
| Insulation resistance | >2000 | MΩ | ||
| Environmental protection | IP66 | |||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
Applications
- Large platform scales
- Hanging scales
- Check weighing
