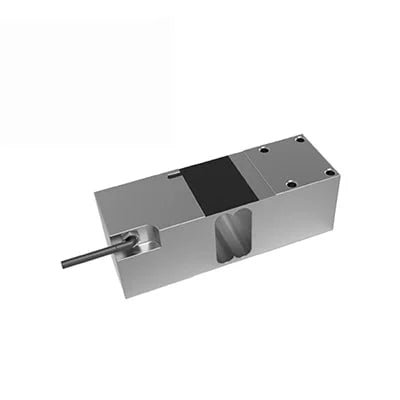

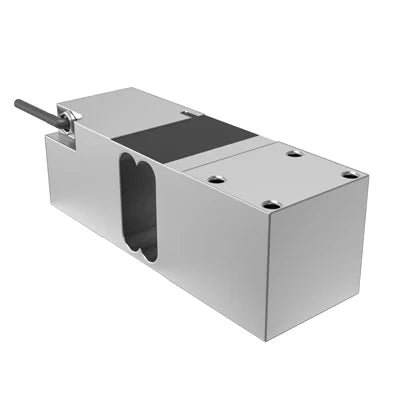

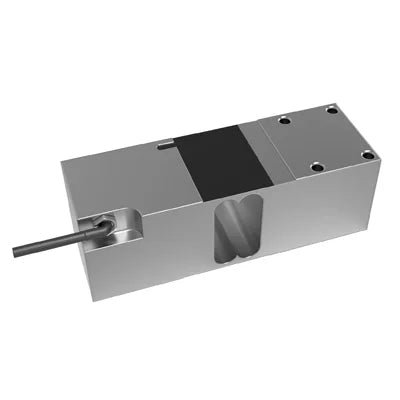

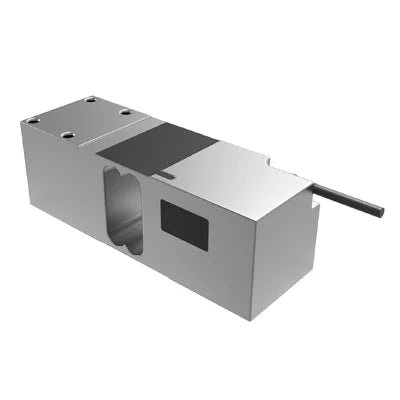

100kg Load Cell – Model 1260 Aluminum High-Capacity Single-Point Load Cell
$440.78
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $435.78 |
| 11 - 15 | $10.00 | $430.78 |
| 16 - 20 | $15.00 | $425.78 |
Payment Methods:
Description
High-Performance Load Cell for Large Platform Weighing
The 100kg Load Cell – Model 1260 from Tedea-Huntleigh is a high-capacity single-point load cell designed for direct mounting on large platforms. Engineered for industrial and commercial applications, this aluminum load cell delivers precise, reliable, and repeatable measurements across a wide range of high-capacity weighing tasks.
Key Features & Benefits:
- Capacity: 100 kg (available in 50–635 kg variants)
- Construction: Durable aluminum for lightweight yet robust performance
- Platform Compatibility: Single-point 600 × 600 mm – ideal for large platform scales
- Cable Length: 3 m – flexible installation options
- Environmental Protection: IP66 rated, fully protected against dust and water ingress
- Precision Engineering: Ensures accurate readings for demanding industrial applications
Applications:
- Large bench and platform scales
- Industrial process weighing
- Packaging and commercial weighing systems
Limitations:
- Not ATEX/FM approved – not suitable for explosive or hazardous environments
Smart Tip: The Model 1260 is perfect for industrial setups that require a lightweight, high-capacity load cell with uncompromised precision.
Description
Model 1260 is a high-performance, high-capacity single-point load cell designed for direct mounting of large platforms.
Its rugged construction offers high resistance to side forces, making it suitable for a wide range of weighing applications, including bench scales and check weighing.
A special humidity-resistant protective coating assures long-term stability over the entire compensated temperature range.
For hazardous environments this load cell has an ATEX and FM approval.
The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into appropriate electronics.
Features
- Capacities: 50–635 kg
- Aluminum construction
- Single-point 600 × 600 mm platform
- OIML R60 and NTEP approved
- IP66 protection
- Available with metric and UNC threads
Options
- ATEX, FM and IECEx approvals available
| Parameter | Value | Unit | ||
|---|---|---|---|---|
| Rated capacity (kg) | 50, 75, 100, 150, 200, 250, 300, 500, 635, 1000 | kg | ||
| NTEP/oiml accuracy class | NTEP | Non-Approved | C3 | |
| Max. no. of intervals (n) | 5000 single | 1000 | 3000 | |
| Rated output R.O | 2 | mV/V | ||
| Rated output tolerance | 0.2 | ±%mV/V | ||
| Zero balance | 0.2 | ±%FSO | ||
| Ultimate over load | 300 | % of R.C | ||
| Excitation voltage | 10 | VDC or VAC RMS | ||
| Max. excitation voltage | 15 | VDC or VAC RMS | ||
| Input resistance | 415±15 | Ω | ||
| Output resistance | 350±3 | Ω | ||
| Insulation resistance | >2000 | MΩ | ||
| Environmental protection | IP66 | |||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
Applications
- Large platform scales
- Hanging scales
- Check weighing
