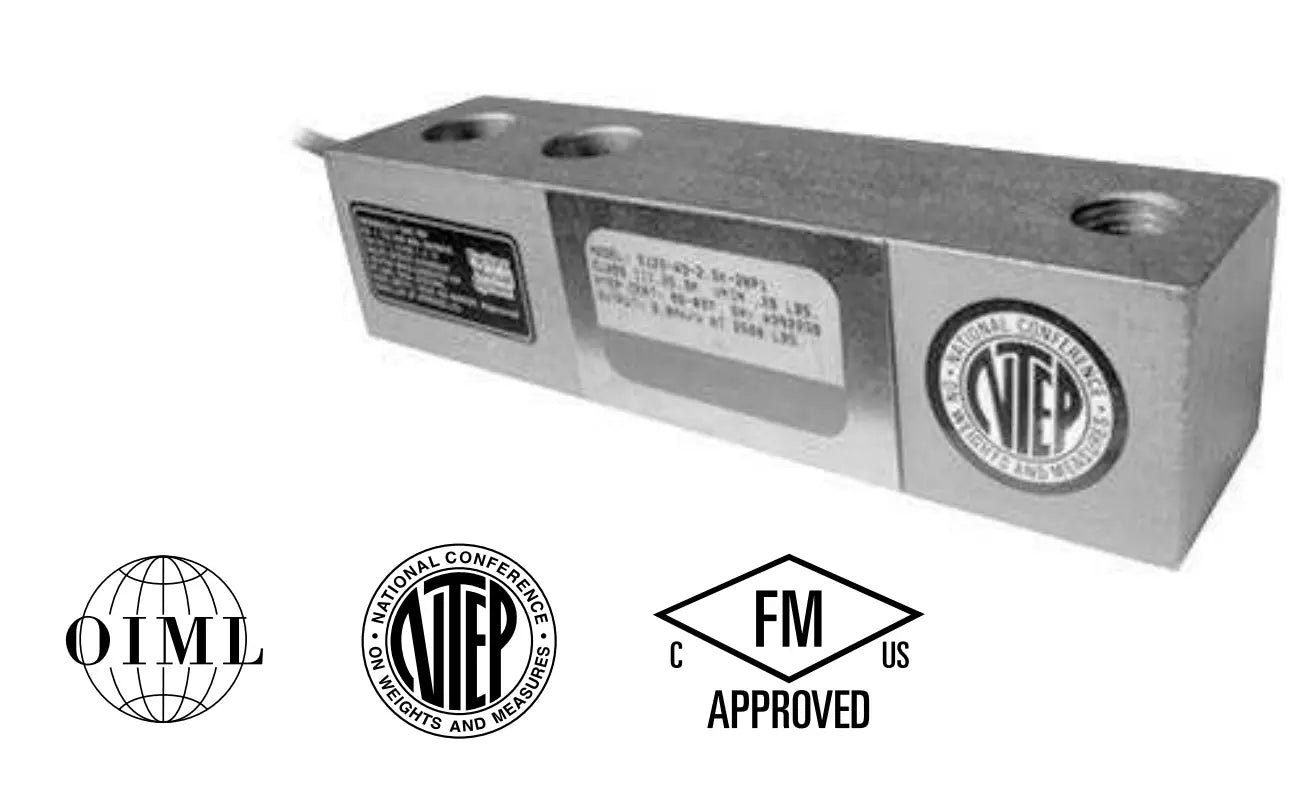

Revere Single Point Load Cell – Model 5123
The Revere Model 5123 Single-Point Load Cell offers precision for industrial and process weighing applications. OIML R-60 and NTEP certified, this nickel-plated, low-profile shear beam load cell is ideal for floor, tank, bin, and hopper weighing systems. IP67 sealed for durability.
Price range: $71.59 through $181.28
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Revere Single Point Load Cell – Model 5123
Brand :- Revere
DESCRIPTION
Model 5123 is a low profile single-ended shear beam type load cell made from nickel-plated tool steel . This product is suitable for small and medium platform scales, overhead track scales, hopper scales, and process weighing applications . Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area . Ease of installation is made possible through the use of a partially threaded hole to accept levelling feet, load buttons, or loading cables.
FEATURES
• Capacities: 500–5000 kg, 1k–10k lbs.
• Low profile construction
• Certified to OIML R-60, 3000d and NTEP
class III, 3000 divisions
• Sealing: IP67 (DIN 40.050)
• Nickel-plated alloy steel construction
• Threaded load hole
• Optional
– FM certified for use in potentially
explosive atmospheres
APPLICATIONS
• Floor scales
• Tank weighing
• Bin and hopper weighing
