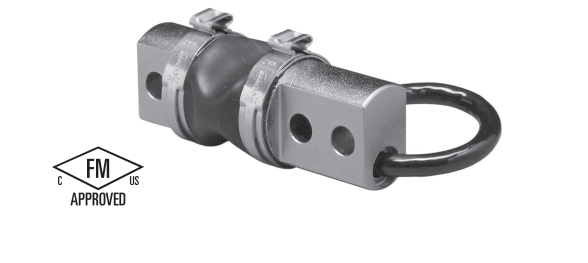

Model 60040 Low-Profile Bending Beam
The Model 60040 load cell by Sensortronics is a compact bending beam sensor designed for bin and hopper weighing, conveyor scales, and industrial net weighing systems. IP65-rated and Factory Mutual (FM) approved, this high-precision alloy steel load cell ensures reliable performance in hazardous environments.
$57.78
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $52.78 |
| 11 - 15 | $10.00 | $47.78 |
| 16 - 20 | $15.00 | $42.78 |
Payment Methods:
Description
Title :- Model 60040 Low-Profile Bending Beam
Brand :- Sensortronics
DESCRIPTION
Model 60040 is a compact, low capacity, alloy-steel, high precision bending-beam load cell.
The product’s small size and accuracy makes it ideal for applications that demand high performance from a small package. This load cell is commonly used in platform scales, conveyer scales, and varied process weighing applications.
The product is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments. A mounting accessory, Model 65059-TWA, is available for Model 60048.
FEATURES
• Rated capacities of 25 to 500 pounds
• Tension or compression loading capabilities
• Compact, low profile design
• Sensorgage™ sealed to IP65 standards
• Factory Mutual System Approved for Classes I, II, III;
Divisions 1 and 2; Groups A through G.
Also, non-incendive ratings (without barriers)
• Optional
– Companion tank weighing assemblies available
(Model 65059-TWA)
APPLICATIONS
• Bin and hopper weighing
• Belt conveyor scales
• Netweighing
