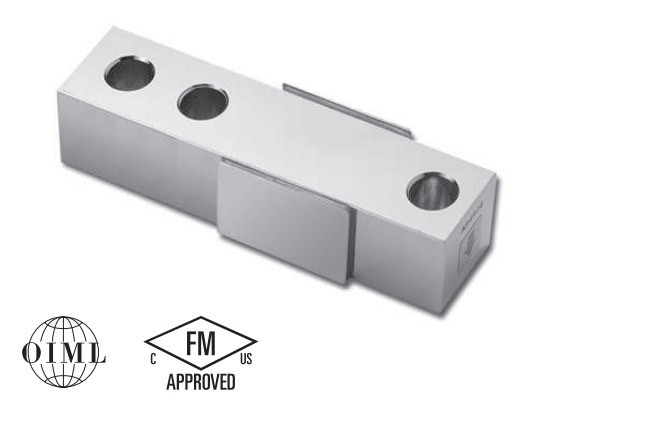

Model SEB Single-Ended Beam
The Model SEB load cell by Celtron is a single-ended shear beam sensor with electroless nickel-plated alloy steel construction. IP67-rated and OIML C3 approved, it’s ideal for truck and rail scales, silo and hopper weighing, platform scales, and pallet truck applications. FM-approved for hazardous environments.
$81.59
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $76.59 |
| 11 - 15 | $10.00 | $71.59 |
| 16 - 20 | $15.00 | $66.59 |
Payment Methods:
Description
Title :- Model SEB Single-Ended Beam
Brand :- Celtron
DESCRIPTION
The Model SEB is a single-ended shear beam load cell designed for multiple cell applications, such as low profile platform or small tank scales, when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading.
The Model SEB is constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage.
FEATURES
• Capacities: 500 kg, 1 t, 1.5 t, 2 t, and 2.5 t
• High side-load tolerance
• Electroless nickel-plated-alloy tool steel
• OIML C3 approval from 500 kg to 2.5 t
• Optional
– FM approval available
APPLICATIONS
• Truck/rail scales
• Silo/hopper/tank weighing
• Platform scales (multiple load cells)
• Pallet truck scales
• Packaging machines
