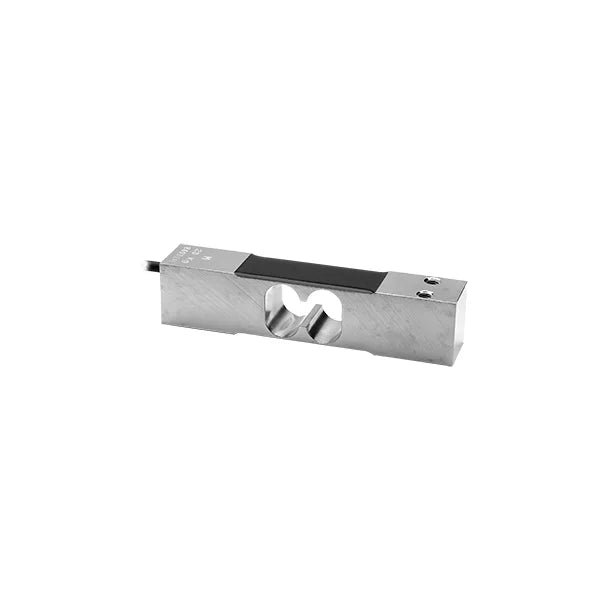

Model 1130 Stainless Steel Single-Point Load Cell

Download Datasheet

Model 1130 Stainless Steel Single-Point Load Cell – High-Accuracy Weighing Solution

Enhance Precision and Reliability in Your Weighing Applications

The Model 1130 Stainless Steel Single-Point Load Cell is a low-profile, high-accuracy load cell designed for direct mounting in bench and platform scales, packaging systems, and process weighing equipment. Built for durability and performance, this load cell excels in demanding environments while delivering precise results across a wide range of applications.

Key Features & Benefits:

• Capacities: 7–100 kg, accommodating small to medium load requirements
• High-Quality Construction: Robust stainless steel body ensures long-lasting performance and corrosion resistance
• Single-Point 400 × 400 mm Platform: Ideal for compact, low-profile bench and counting scales
• Exceptional Accuracy: OIML R60 and NTEP approved for reliable weighing performance
• Environmental Protection: IP66 rated, providing resistance against dust and water ingress
• Versatile Mounting Options: Available with metric (MT) and UNC threads for flexible installation
• Stable Performance: Humidity-resistant coating ensures long-term stability across a wide temperature range
• Enhanced Electrical Compensation: Two sense wires compensate for changes in lead resistance due to temperature variation or cable extension

Applications:

• Bench and platform scales
• Packaging machinery
• Process weighing systems
• Low-profile counting scales

Technical Specifications:

• Rated Capacity: 7, 10, 15, 20, 30, 50, 75, 100 kg
• Rated Output: 2.0 mV/V ±0.2%
• Zero Balance: ±0.2% FSO
• Creep Error: 0.0015–0.05% FSO
• Temperature Effect on Sensitivity: 0.0023–0.01% FSO/°C
• Ultimate Overload: 300% of rated capacity
• Excitation Voltage: 10 VDC or VAC RMS (Max. 15 V)
• Input/Output Resistance: 385±15 Ω / 350±3 Ω
• Insulation Resistance: >2000 MΩ

Optional Certifications:

• ATEX
• FM
• IECEx

The Model 1130 combines small physical size with high precision, making it perfect for applications where space is limited but accuracy cannot be compromised. Whether you are upgrading an existing scale or integrating it into a new system, this load cell delivers reliable, repeatable performance in a compact, durable design.

Request a Quote Today to enhance your weighing processes with a dependable, high-performance load cell from Carewell Group.
