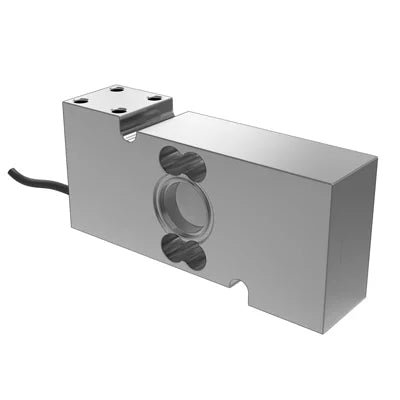

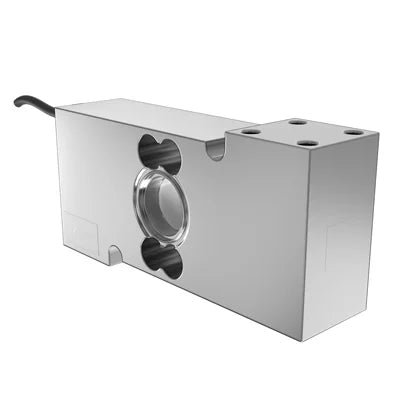

250kg Load Cell – 1510 Single-Point Load Cell
$777.85
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $772.85 |
| 11 - 15 | $10.00 | $767.85 |
| 16 - 20 | $15.00 | $762.85 |
Payment Methods:
Description
High-Accuracy, Washdown-Ready Load Cell for Industrial and Food Industry Applications
The 250kg Load Cell – 1510 Single-Point from Tedea-Huntleigh is a high-accuracy stainless steel load cell designed for platform scales, wall scales, and other process weighing applications, especially in environments requiring frequent washdown. Engineered for durability and precision, this load cell ensures reliable and repeatable measurements in demanding industrial and food processing environments.
Key Features & Benefits:
- Capacity: 250 kg (available in 100–500 kg variants)
- Construction: Stainless steel for superior corrosion resistance and long-lasting performance
- Platform Compatibility: Single-point 600 × 600 mm – ideal for industrial platforms
- Accuracy: OIML 3000 d C3MR10 – ensures precise and reliable readings
- Mounting Thread Type: MT – secure and easy installation
- Environmental Protection: IP68 rated – fully protected against dust and water immersion
- Precision Engineering: Perfect for food industry, industrial, and process weighing applications
Applications:
- Platform scales
- Wall-mounted scales
- Food industry process weighing
- Industrial weighing systems requiring high-accuracy and washdown protection
Limitations:
- Not ATEX/FM approved – unsuitable for explosive or hazardous environments
Smart Tip: The 1510 load cell is ideal for environments that require high-accuracy weighing combined with full washdown resistance, making it perfect for food and industrial applications.
Description
Model 1510 is a high-accuracy single-point load cell ideally suited to industrial applications which undergo regular washdown, typically platforms, wall scales and other process weighing applications in the food industry.
Hermetically sealed against moisture, the all-welded construction of the 1510, in combination with a polyurethane dual-shielded cable, enables continuous operation in demanding environments while maintaining a high operating specification.
The two additional sense wires feed back the voltage reaching the load cell.
Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
Features
- Capacity range: 100–500 kg
- Stainless steel construction
- Single-point 600 x 600 mm platform
- OIML R60 and NTEP approved
- IP68 protection
Options
- EEx ia IIC T6 hazardous area approval
- FM and IECEx approvals available
- Platform size 600 x 800 mm available
| Parameter | Value | Unit | |||
|---|---|---|---|---|---|
| Rated capacity (kg) | 100, 250, 500 | kg | |||
| NTEP/oiml accuracy class | NTEP | Non-approved | C3 | C4 | |
| Max. no. of intervals (n) | 5000 single | 1000 | 3000 | 4000 | |
| Rated output R.O | 2 | mV/V | |||
| Rated output tolerance | 0.2 | ±%mV/V | |||
| Zero balance | 0.2 | ±%FSO | |||
| Ultimate over load | 300 | % of R.C | |||
| Excitation voltage | 10 | VDC or VAC RMS | |||
| Max. excitation voltage | 15 | VDC or VAC RMS | |||
| Input resistance | 380±10 | Ω | |||
| Output resistance | 350±2 | Ω | |||
| Insulation resistance | >1000 | MΩ | |||
| Environmental protection | IP68 | ||||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
Applications
- Food industry platforms
- Marine and hybrid scales
- Process weighing hoppers
- Demanding environments
