SQB- Single-Ended Beam
Discover Celtron high side-load tolerance single-ended beam load cells for silo/hopper/tank weighing, truck/rail scales, and packaging machines, ensuring precise, reliable measurements for various industrial applications.
Price range: $61.60 through $86.95
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- SQB- Single-Ended Beam
Brand :- Celtron
DESCRIPTIONÂ

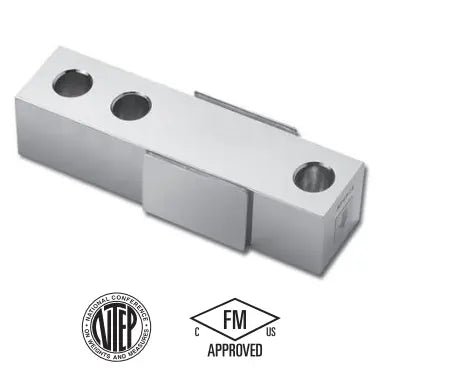

Model SQB is a single-ended shear beam load cell designed for multiple cell applications, such as low profile platform or small tank scales, when used with proper mounting accessories.
It is insensitive to side loading and capable of reversed loading. Models SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage.
Features You’ll Love:
• Capacities: 500 to 20k lbs, 250 to 5000 kg
• High side-load tolerance
• Electroless nickel-plated-alloy tool steel
• NTEP Class III 5000M for SQB, SQB-F and SQB-SS
available from 1k to 10k lbs
• SQB-SS stainless steel construction
• Optional
– FM approval
– EDOC product appearance will differ from the
photograph due to coating
APPLICATIONS
• Truck/rail scales
• Silo/hopper/tank weighing
• Platform scales (multiple load cells)
• Pallet truck scales
• Packaging machines
