Model STC/STR S-Type Load Cell
Explore the Model STC/STR S-Type Load Cell by Celtron. Ideal for tension/compression applications, ranging from 5 to 5000 kg and 250 to 40k lbs. NTEP Class III certified, perfect for Silo/hopper/tank weighing, forklift, crane scale, dosing/filling, and tensile force measurements.
Price range: $81.60 through $97.26
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model STC/STR S-Type Load Cell
Brand :- Celtron
DESCRIPTION
The Model STC/STR is made of Aluminum, Alloy Steel or Stainless Steel, sealed to IP67 providing excellent protection against moisture and humidity.

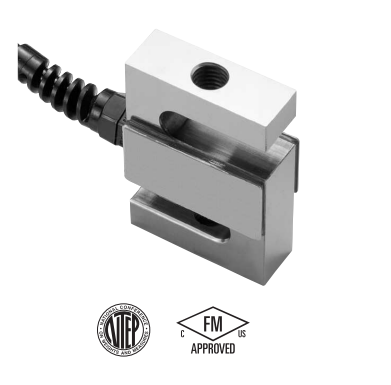

The S-type load cell, as the name indicates, can be easily identified by its S-shaped body. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized.
FEATURES
• Capacities:
Aluminum construction—5, 10, 20 kg;
Alloy Steel construction— 25 to 5000 kg, 250 to 40k lbs
• Bi-directional (tension/compression)
• Rationalized output
• NTEP Class III 5000S, lllL10000 approval from
250 lbs to 20k lbs
• Optional
– Stainless steel available
– FM approval available
– EDOC option available; product appearance will differ
from the photograph due to coating
APPLICATIONS
• Electro-mechanical conversion scales
• Silo/hopper/tank weighing
• Crane scales
• Fork-lift scales
• Dosing/illing
• Universal material tester
• Tensile/pulling force measurement
