Model SSB Single-Ended Load Beam
Explore Tedea-Huntleigh SSB single-ended shear beam type load cells, platform scales (PS), pallet scales (PSc), overhead track scales (OTS), process weighing load cells (PWLC), OIML R-60 certified, NTEP certified (NC), ATEX and UKCA approved load cells, and hermetically sealed load cells (IP66/IP68) for accurate, reliable measurements in various applications
Price range: $294.44 through $767.49
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model SSB Single-Ended Load Beam
Brand :- Revere
DESCRIPTION

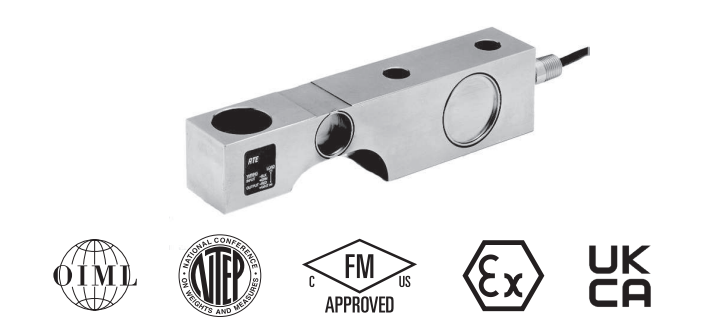

Model SSB is a stainless-steel single-ended shear beam type load cell.
The robust product is suitable for a wide range of platform scales, pallet scales, overhead track scales, and process weighing applications.
The fully-welded construction and water block cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical, and
allied process industries.
The product meets the stringent Weights and Measures requirements throughout Europe and the USA.
FEATURES
• Capacities: 0.5 t, 1 t, 2 t, 5 t, 10 t, 1k lbs., 2k lbs., 5k
lbs., and 10k lbs.
• Fully welded, stainless steel construction
• Hermetically sealed, IP66 and IP68
• Certified to OIML R-60, 4000d and NTEP 10000d
• Current calibration output (SC version) ensures easy
and accurate parallel connection of multiple load cells
• Digital version available (model SBC)
• Optional
– ATEX & UKCA Approval.
– FM approval
APPLICATIONS
• Platform scales
• Belt scales
• Pallet scales
• Overhead track scales
• On-board weighing
• Silo hopper weighing
