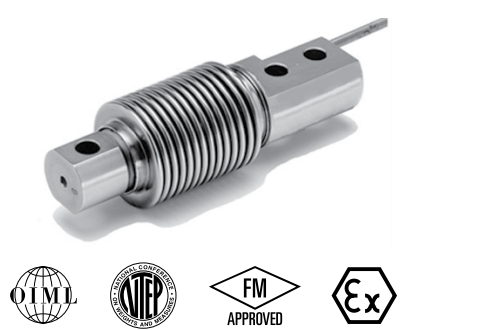

Model SHBxR Single-Ended Load Beam
Shop Tedea-Huntleigh SHBxR bending beam load cells, stainless steel load cells, platform scales (PS), belt scales (BS), packaging machines, silo/hopper weighing (SHW), OIML R-60 certified, NTEP class IIIL load cells, ATEX and FM certified load cells, and hermetically sealed load cells (IP66/IP68) for reliable, accurate measurements across various industrial applications
$133.19
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $128.19 |
| 11 - 15 | $10.00 | $123.19 |
| 16 - 20 | $15.00 | $118.19 |
Payment Methods:
Description
Title :- Model SHBxR Single-Ended Load Beam
Brand :- Revere
DESCRIPTION
The Model SHBxR is a fully weld-sealed stainless steel bending beam type load cell.
This product is suitable for low capacity platform scales, packaging machines, hybrid scales and process weighing.
Fully welded construction and water block cable-entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied
industries.
This product meets the stringent Weights and Measures requirements throughout Europe.
FEATURES
• Capacities: 5–500 kg
• Fully welded, stainless steel construction
• Hermetically sealed, IP66 and IP68
• Certified to OIML R-60, 4000d and NTEP class IIIL,
10000 divisions
• Current calibration output (SC version) ensures easy
and accurate parallel connection of multiple load cells
• Optional
– ATEX and FM certified versions are available for use in
potentially explosive atmospheres
APPLICATIONS
• Platform scales
• Belt scales
• Packaging machines
• Silo/hopper weighing
