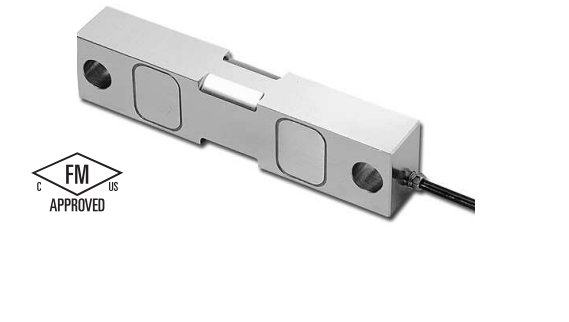

Model DSR Double-Ended Shear Beam
Discover the Model DSR Double-Ended Shear Beam Load Cell by Celtron. Available in 1k–75k lbs, featuring center-load design, electroless nickel-plated construction, and FM approval. Ideal for silo, hopper, and tank weighing with hermetically sealed, rationalized output .
$376.89
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $371.89 |
| 11 - 15 | $10.00 | $366.89 |
| 16 - 20 | $15.00 | $361.89 |
Payment Methods:
Description
Title :- Model DSR Double-Ended Shear Beam
Brand :- Celtron
DESCRIPTION
Model DSR is constructed of alloy tool steel and is potted to IP67 providing excellent protection against moisture and humidity.
The double-ended mounting provides a good restraint to possible tank movements and, in many cases, eliminates the need for check rods.
The shear beam design gives an excellent performance for high capacity loading.
The output is rationalized to facilitate multiple-cell applications.
FEATURES
• Capacities 1k–75k lbs
• Double-ended center-load shear beam design
• Rationalized outputs
• Free of horizontal movement
• Insensitive to side load
• Electroless nickel-plated alloy tool steel
• Optional
– Hermetically sealed version
– Stainless steel version
– FM approval
– EDOC product appearance will differ from the
photograph due to coating
APPLICATIONS
• Silo/hopper/tank weighing
