Model ACB Single-Ended Beam Load Cell
The Model ACB load cell by Tedea-Huntleigh is a stainless steel, hermetically sealed IP66/IP68 sensor ideal for platform scales, belt scales, silo and hopper weighing. OIML R60 and ATEX-certified, it ensures high accuracy in food, chemical, and hazardous environments.
Price range: $418.82 through $627.51
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model ACB Single-Ended Beam Load Cell
Brand :- Tedea-Huntleigh
DESCRIPTION

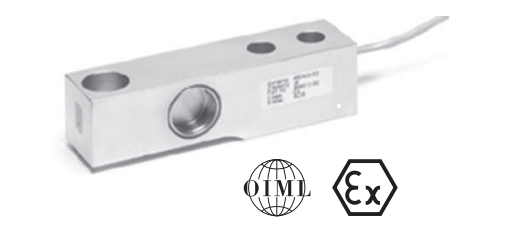

The Model ACB is a high performance stainless steel beam type load cell. An integral mounting step removes the need for spacer plates and ensures optimum “bolt down” conditions.
This product is suitable for small and medium platform scales, hybrid scales, pallet weighers, and process weighing.
The fully welded construction and the cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical, and allied process industries.
FEATURES
• Capacities: 500 kg, 1 t, 2 t, and 5 t
• Low profile, stainless steel construction
• Hermetically sealed, IP66 and IP68
• Certified to OIML R60, 6000d
• 1000 Ω bridge impedance
• Current calibration output (SC) ensures easy and
accurate connection of multiple load cells
• Integral mounting step
• Optional
– ATEX versions are available for use in potentially
explosive atmospheres, caused by gas or dust
APPLICATIONS
• Platform scales
• Belt scales
• Overhead track scales
• Silo hopper weighing
