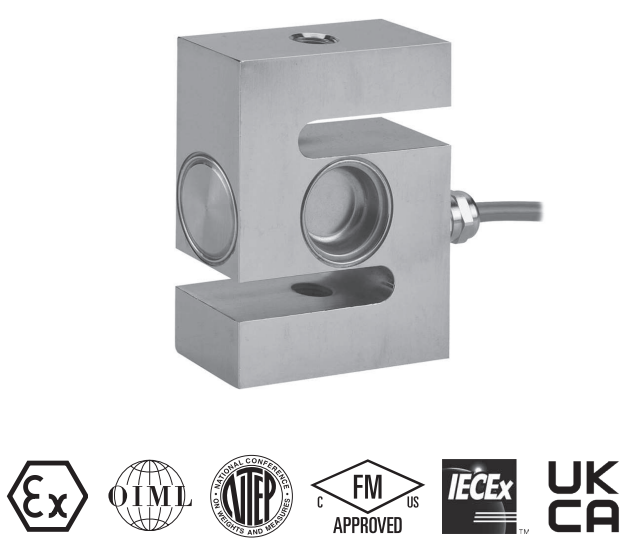

Model 620 S-Type Stainless Steel Load Cell
The Tedea-Huntleigh Model 620 S-Type Load Cell is a high-precision (500–5000 kg) stainless steel load cell with IP68 welded sealing for tension & compression applications. OIML & NTEP certified, FM, ATEX & IECEx approved, it’s ideal for hopper & tank weighing, hybrid scales, material testing & force measurement.
Price range: $264.44 through $537.54
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model 620 S-Type Stainless Steel Load Cell
Brand :- Tedea-Huntleigh
DESCRIPTION
Model 620 is a stainless-steel S-type load cell. Its welded sealing combined with high accuracy, make this load cell ideally suited for a wide range of applications of process

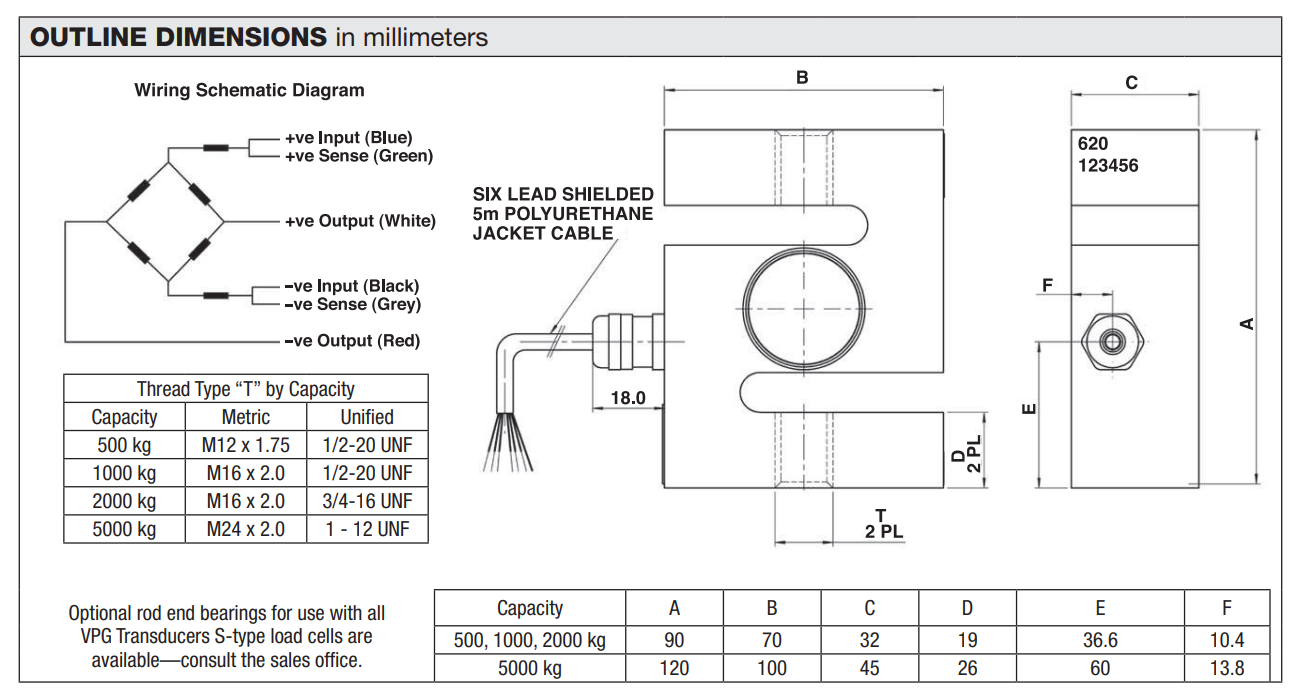

weighing and force measurements. Approvals include OIML C3 (3000d); NTEP 3000d single and NTEP 5000d multiple. The six-wire cable includes two sense wires that compensate for changes in lead resistance due to temperature changes and cable extension. Model 620 offers a choice of bolt threads in metric or unified systems; see table below.
FEATURES
• Capacity range: 500–5000 kg
• Stainless-steel construction
• Sealed by welding to IP68
• S-type design for use in tension and compression
• OIML approved to 3000d (500–5000 kg)
• NTEP approved to 5000d (500–5000 kg)
• Choice of mounting threads metric or unified systems
• 6-wire cable (sense circuit)
• Optional
– FM Approval, ATEX, IECEx and UKCA
certifications available.
APPLICATIONS
• Hopper (tank Weighing)
• Hybrid scales
• Belt weighing
• Lever arm conversions
• Material testing machines
• Vibrations filling equipment
• Dynamometers
