Model 380 Co-Planar Beam Load Cell
The Tedea-Huntleigh Model 380 Co-Planar Beam Load Cell is a high-precision (7.5–250 kg), low-profile aluminum load cell with IP65 sealing. Ideal for personal, medical & baggage scales, and postal applications, it’s OIML & NTEP certified, ATEX approved & perfect for high-accuracy weighing.
Price range: $35.80 through $74.87
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model 380 Co-Planar Beam Load Cell
Brand :- Tedea-Huntleigh
DESCRIPTION

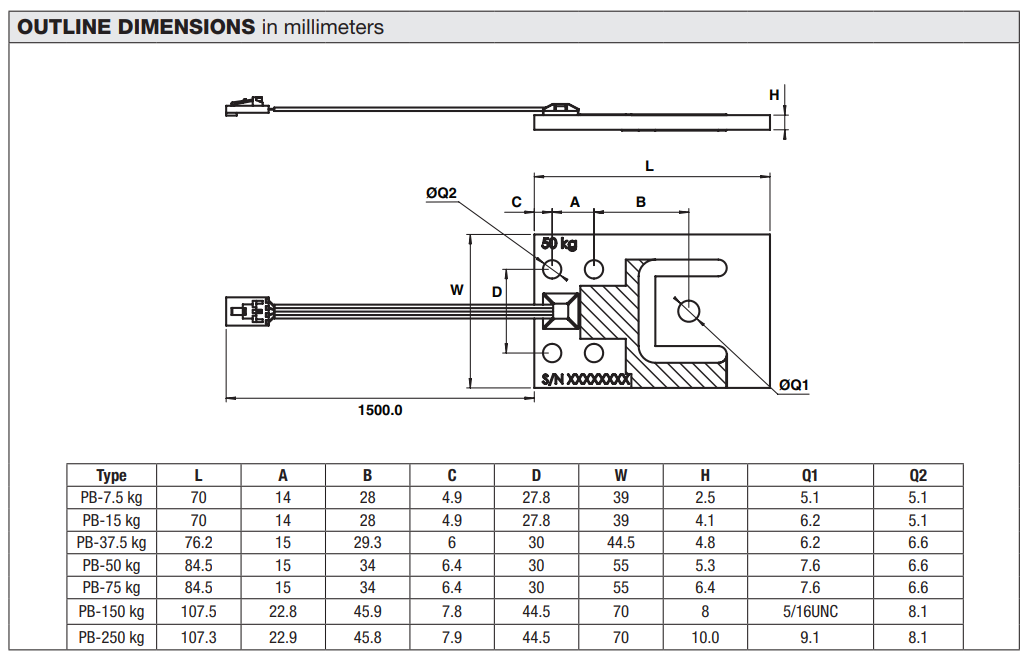

Model 380 is a very low-profile planar beam design, allowing direct mounting in low-profile platform scales. The range of capacities and low profile make Model 380 most suitable for use in a wide range of applications.
FEATURES
• Capacity range: 7.5–250 kg
• Only 2.5–8 mm high
• Very low profile
• Aluminum construction
• OIML R60 and NTEP approved.
• IP65 protection
• 1000Ω input impedance
• Provides freedom in rectangular scale size design
• Matched output and current calibration circuitry
OPTIONAL
• ATEX and UKCA certification available for potentially
explosive atmospheres.
APPLICATIONS
• Personal scales
• Commonly used in low-profile infant and adult medical scales
• Large and medium low-profile platform scales
• Airport baggage scales
• Postal scales
