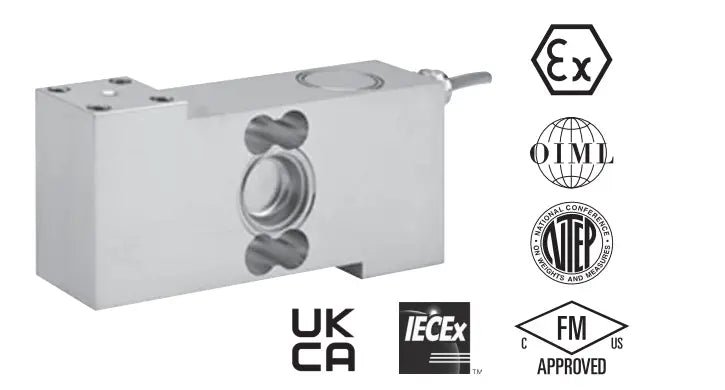

Model- 1510 Hermetically Sealed Single-Point Load Cell
Tedea-Huntleigh Model 1510 Hermetically Sealed Single-Point Load Cell – Stainless steel, high-accuracy, OIML R60 & NTEP approved, IP68 rated, ideal for food industry platforms, marine & hybrid scales, process weighing hoppers, and harsh environments. Washdown-resistant, ATEX/FM/IECEx certified, moisture-resistant with dual-shielded cable.
Price range: $536.49 through $568.41
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model- 1510 Hermetically Sealed Single-Point Load Cell
Brand :- Tedea-Huntleigh
DESCRIPTION
Model 1510 is a high-accuracy single-point load cell ideally suited to industrial applications which undergo regular washdown, typically platforms, wall scales and other process weighing applications in the food industry.
Hermetically sealed against moisture, the all-welded construction of the 1510, in combination with a polyurethane dual-shielded cable, enables continuous
operation in demanding environments while maintaining a
high operating specification.
The two additional sense wires feedback the voltage reaching the load cell.
Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
FEATURES
• Capacity range: 100–500 kg
• Stainless steel construction
• Single-point 600 x 600 mm platform
• OIML R60 and NTEP approved
• IP68 protection
• Optional
– FM Approval, ATEX, IECEx and UKCA
certifications available.
– Platform size 600 x 800 mm available
APPLICATIONS
• Food industry platforms
• Marine and hybrid scales
• Process weighing hoppers
• Demanding environments• Food industry platforms
• Marine and hybrid scales
• Process weighing hoppers
• Demanding environments
