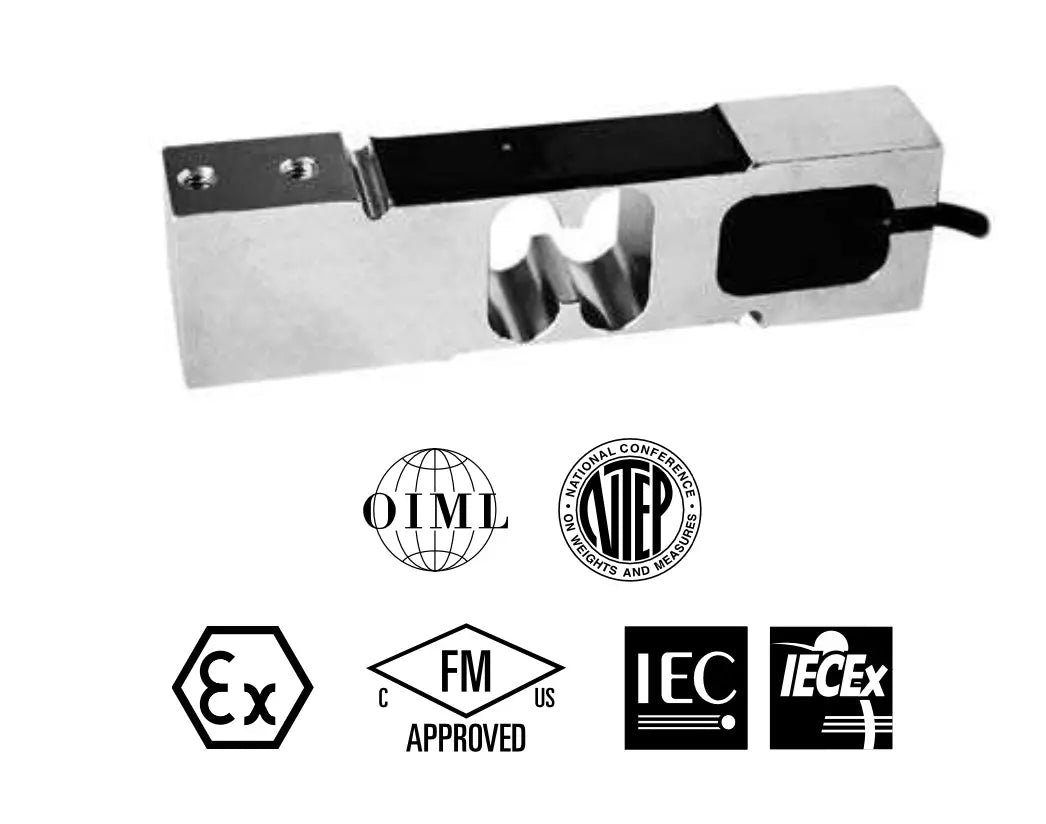

Model 1142 Single-Point Stainless Steel Load Cell
Tedea-Huntleigh Model 1142 Stainless Steel Single-Point Load Cell – High-precision, OIML & NTEP-approved load cell for platform and bench scales. IP66-rated for industrial weighing, ideal for counting scales, grocery scales, and food & retail weighing. Compact, humidity-resistant design with optional ATEX, FM, and IECEx approvals for harsh environments.
$161.08
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $156.08 |
| 11 - 15 | $10.00 | $151.08 |
| 16 - 20 | $15.00 | $146.08 |
Payment Methods:
Description
Title :- Model 1142 Single-Point Stainless Steel Load Cell
Brand :- Tedea-Huntleigh
Description
Introducing the Model 1142 is a stainless steel single-point load
cell, suitable for direct mounting with platform, bench, counting, and a wide range of other scale applications. Small physical size, combined with high accuracy and low cost, makes the 1142 load cell the perfect choice for new or retroit scale construction.
A humidity-resistant protective coating assures stable operation in damp environments over the entire compensated range and conforms to IP66 (IEC 60529). Also available with ATEX approved version for hazardous areas. The six-wire cable includes two sense wires that compensate for changes in lead resistance due to temperature changes and cable extension. Model 1142 options offer a choice of bolt threads, 1⁄4-20 UNC or M6 × 12, and a grounded version that includes a “shield” wire in the load cell cable.
Features You’ll Love:
- Capacity range: 10–150 kg
- Durable stainless steel construction
- Single-point 400 × 400 mm platform
- Sealed to IP66 for protection against dust and water
- Compact size: only 40 mm high
- OIML approved to C3 (20–100 kg) and NTEP Class III/5000
- Choice of mounting threads: 1⁄4-20 UNC or M6 × 12
- Optional❍ ATEX, FM and IECEx approvals available ❍ Grounded version includes shield wire in
load cell cable
Perfect for These Applications:
- Platform scales for precise weight measurement
- Bench scales to streamline your workspace
- Counting scales for efficient inventory management
- Grocery scales that ensure accuracy at checkout
