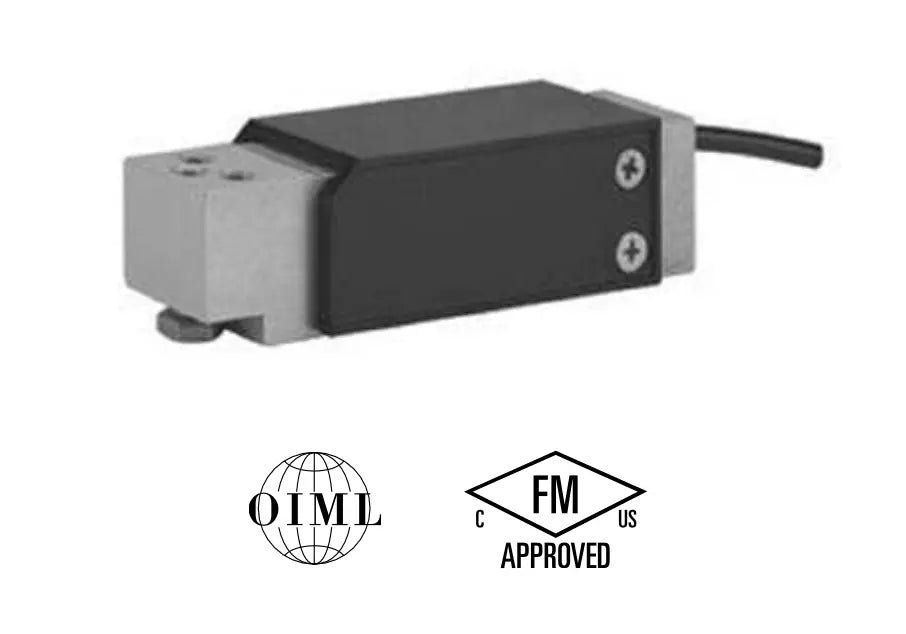

Model 1030 Tede-Huntleigh Low Profile Single-Point Load Cell
Model 1030 Tedea-Huntleigh Low Profile Single-Point Load Cell – Perfect for low-cost bench scales, counting scales, grocery scales, and laboratory weighing. OIML & FM approved for accuracy and reliability. Low-capacity, high-precision aluminum load cell with overload stop for process weighing. IP65 rated for durable performance in various applications.
$39.77
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $34.77 |
| 11 - 15 | $10.00 | $29.77 |
| 16 - 20 | $15.00 | $24.77 |
Payment Methods:
Description
Title :- Model 1030 Tede-Huntleigh Low Profile Single-Point Load Cell
Brand :- Tedea-Huntleigh
DESCRIPTION
Imagine a world where precision meets affordability where your weighing needs are seamlessly fulfilled with unmatched accuracy. Enter the Model 1030, your reliable companion designed specifically for low-cost, low-capacity weighing platforms. Picture this: a sturdy yet lightweight aluminum structure, perfect for larger platforms, delivering exceptional performance across a spectrum of applications. Whether you’re using it for bench scales, laboratory work, money counting, or process weighing, the Model 1030 is here to elevate your experience.
This remarkable load cell doesn’t just promise accuracy; it’s built to last. With an optional special humidity resistant protective coating is available as an option which assures long-term reliability. The Model 1030’s built in overload stop can provide mechanical protection against overloading , ensuring your investment is safeguarded.
The innovation continues with two additional sense wires that provide vital feedback on the voltage reaching the load cell. This means complete compensation for any changes in lead resistance due to temperature fluctuations or cable extension, guaranteeing you always get the most accurate readings by feeding this data into the appropriate electronics.
Features You’ll Love
- Capacities: 2–15 kg
- Construction: Durable aluminum
- Platform Size: Single-point, 350 x 350 mm
- Compliance: OIML R60
- Protection: IP65 rating for dust and water resistance
- Thread Options: Available with UNC threads
- Optional Enhancements:
- FM approval for added safety
- IP67 protection for even more robust environment
Perfect for These Applications:
- Bench Scales: For precise weight measurements
- Counting Scales: Perfect for inventory and supply management
- Grocery Scales: Ensure accuracy at checkout
