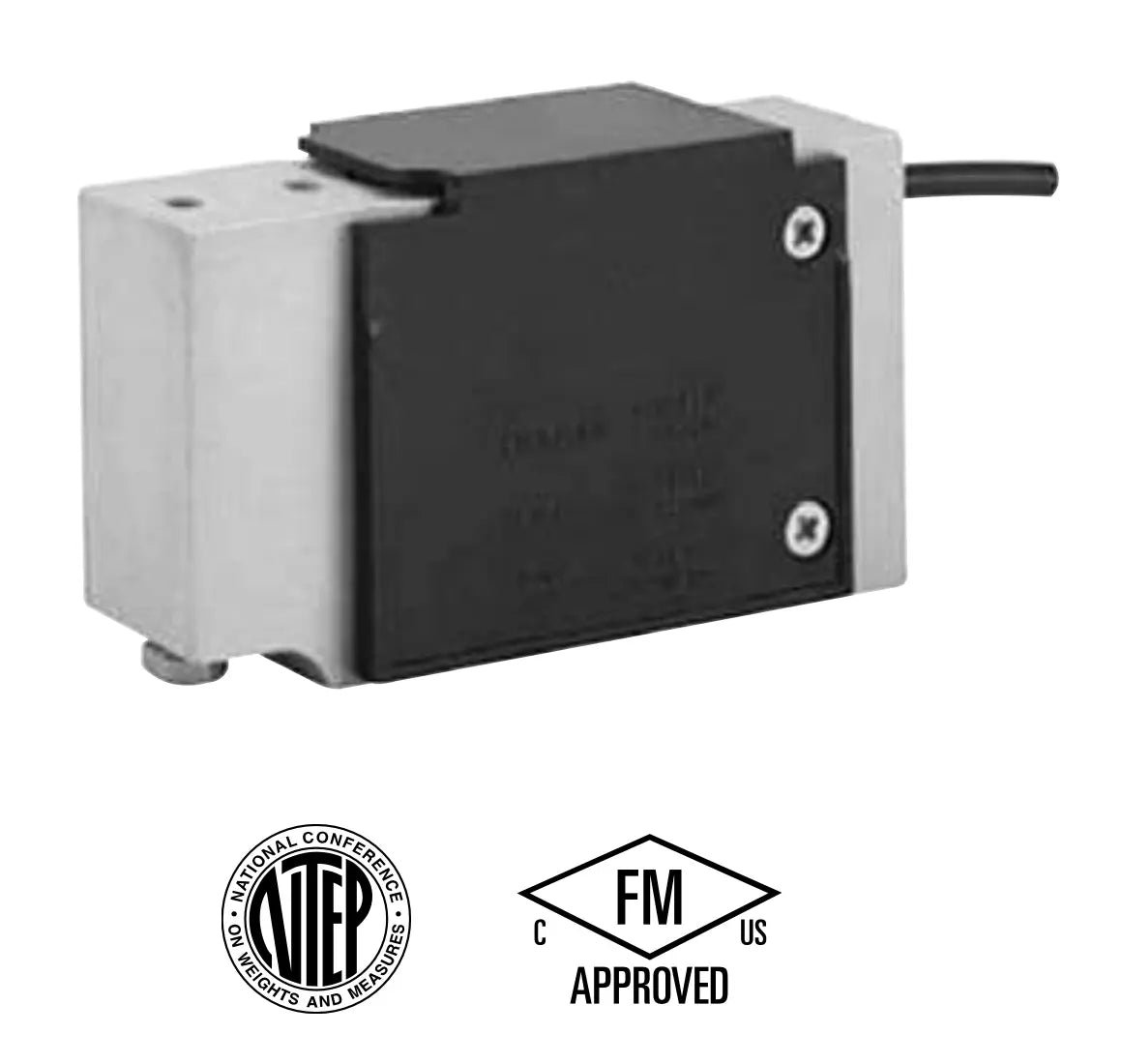

Model 1010/1015 Tedea Huntleigh Aluminum Single-Point Load Cell

Title :- Model 1010/1015 Tedea Huntleigh Aluminum Single-Point Load Cell

Brand :-  Tedea Huntleigh

DESCRIPTION

Imagine a world where accuracy meets affordability, where the burden of weighing becomes a seamless experience. Introducing the Model 1010 Load Cell a game changer for businesses seeking reliable, high-performance weighing solutions.

The Model 1010 is a single-point load cell designed for direct mounting of low cost, low capacity weighing platforms. Its use in large platforms, combined with its high accuracy and low cost, makes this load cell ideally suited for a large range of weighing applications, including bench scales and counting scales.

A special humidity resistant protective coating is available which ensures long-term reliability. The Model 1010’s built-in overload stop can provide mechanical protection against overloading. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.

FEATURES

• Capacities 3–90 kg
• Aluminum construction
• Single-point 400 x 400 mm platform
• NTEP approved (not applicable for 3 and 90 kg)
• IP65 protection
• Available with metric and UNC threads
• Optional
– FM approval available
– IP67 available

Perfect for These Applications:

• Bench Scales : Great for accurate measurements in workshops or retail spaces.

• Counting Scales : Helps quickly and accurately count items for inventory management.

•Grocery Scales : Ensures reliable measurements for a smooth shopping experience.
