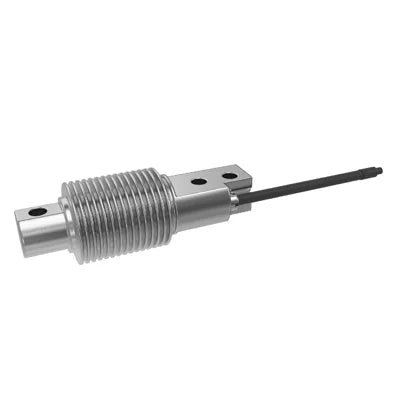

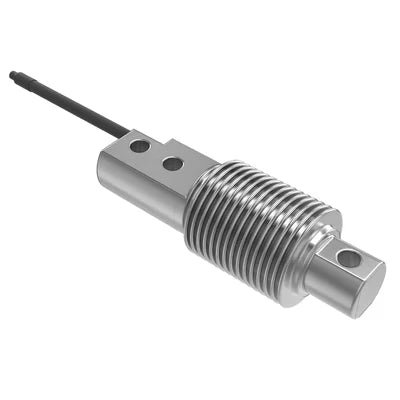

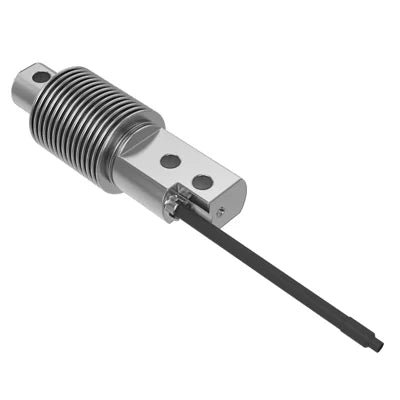

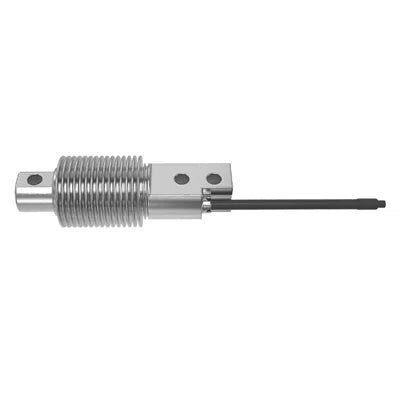

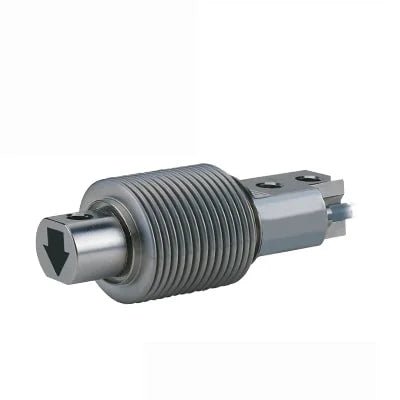

50kg Load Cell – 355 Welded, Hermetically Sealed Load Cell
$331.88
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $326.88 |
| 11 - 15 | $10.00 | $321.88 |
| 16 - 20 | $15.00 | $316.88 |
Payment Methods:
Description
Durable, Moisture-Protected Load Cell for Industrial Weighing Applications
The 50kg Load Cell – Model 355 from Tedea-Huntleigh is a welded bending load cell manufactured from stainless steel and hermetically sealed against moisture. Equipped with a polyurethane-shielded cable, this load cell is designed to perform reliably in demanding environments while maintaining full operating specifications.
Download Data Sheet
Key Features & Benefits:
- Capacity: 50 kg (available in 5–500 kg variants)
- Construction: Stainless steel for corrosion resistance and robust performance
- Hermetically Sealed: Fully protected against moisture, ideal for harsh industrial environments
- Approvals: OIML R60 and NTEP certified – ensures compliance and high accuracy
- Environmental Protection: IP68 rated – dust-tight and fully protected against water immersion
- Precision Engineering: Provides reliable and repeatable measurements in industrial applications
Applications:
- Industrial and process weighing
- Harsh environment applications
- Platform and bench scales
Limitations:
- Not ATEX/FM approved – unsuitable for explosive or hazardous environments
Smart Tip: The Model 355 is perfect for applications where moisture protection, durability, and high-accuracy measurements are essential.
Description
Model 355 is a welded bending load cell manufactured in stainless steel. It is hermetically sealed against moisture and has a polyurethane shielded cable, enabling it to function in demanding environments while maintaining full operating specifications.
With its low profile, high accuracy and hermetic sealing, the Model 355 load cell is ideal for applications such as low-profile platforms, weighing and packing machines, conversion of mechanical and varied other applications where sealed cells are required. For hazardous environments, this load cell is available with EEx ia IIC T6 level of approval as an option.
Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in the lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
Features
- Capacities: 5–500 kg
- Stainless steel construction
- OIML R60 and NTEP approved
- IP68 protection
Options
- EEx ia IIC T6 hazardous area approval
- FM and IECEx approvals available
| Parameter | Value | Unit | |||
|---|---|---|---|---|---|
| Rated capacity (kg) | 5, 10, 20, 30, 50, 100, 200, 250, 500 | kg | |||
| NTEP/oiml accuracy class | NTEP | Non-Approved | C3 | C4 | |
| Max. no. of intervals (n) | 4000 single | 1000 | 3000 | 4000 | |
| Rated output R.O | 2.00 (UR matched = 2.02) | mV/V | |||
| Rated output tolerance | 0.002 | ±%mV/V | |||
| Zero balance | 0.04 | ±%FSO | |||
| Ultimate over load | 300 | % of R.C | |||
| Excitation voltage | 10 | VDC or VAC RMS | |||
| Max. excitation voltage | 15 | VDC or VAC RMS | |||
| Input resistance | 380±10 | Ω | |||
| Output resistance | 355±5 | Ω | |||
| Insulation resistance | >2000 | MΩ | |||
| Environmental protection | IP68 | ||||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
applications
- Low-profile platforms
- Loss-in-weight feeders
- Marine and hybrid scales
- Belt weighers
- Demanding food industry environments
