500kg Load Cell – 355 Welded, Hermetically Sealed Load Cell
$331.88
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $326.88 |
| 11 - 15 | $10.00 | $321.88 |
| 16 - 20 | $15.00 | $316.88 |
Payment Methods:
Description
High-Accuracy, Moisture-Protected Load Cell for Industrial Weighing

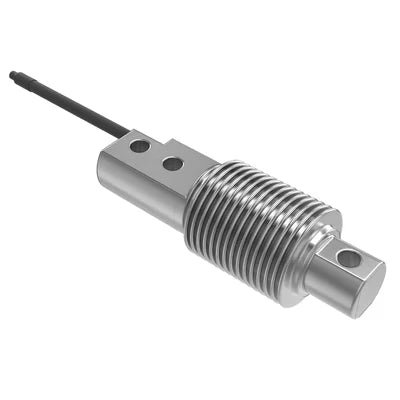

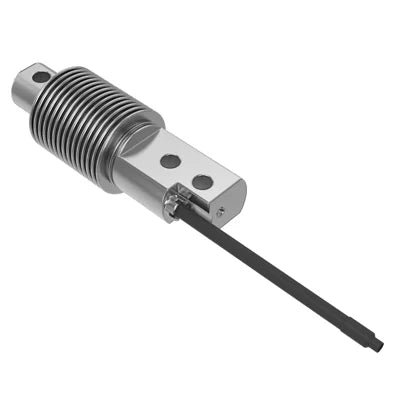

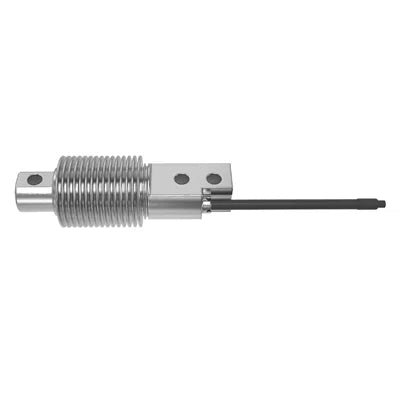

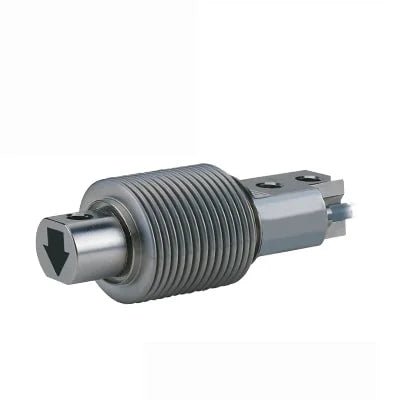

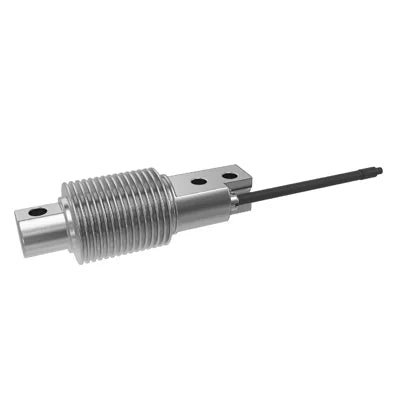

The 500kg Load Cell – Model 355 from Tedea-Huntleigh is a welded bending load cell made from stainless steel and hermetically sealed against moisture. Featuring a polyurethane-shielded cable, this load cell is designed for reliable performance in demanding and harsh environments, making it ideal for industrial, process, and platform weighing applications.
Key Features & Benefits:
- Capacity: 500 kg (available in 5–500 kg variants)
- Construction: Stainless steel for corrosion resistance and long-term durability
- Hermetically Sealed: Fully protected against moisture for wet or harsh conditions
- Approvals: OIML R60 and NTEP certified – ensures compliance and high-accuracy measurements
- Environmental Protection: IP68 rated – dust-tight and fully water-immersible
- Precision Engineering: Provides stable, repeatable, and reliable measurements
Applications:
- Industrial and process weighing
- Platform and bench scales in harsh environments
- Applications requiring moisture protection and high precision
Limitations:
- Not ATEX/FM approved – unsuitable for explosive or hazardous environments
Smart Tip: The Model 355 is perfect for industrial setups where durability, moisture protection, and high-accuracy measurements are critical.
Model 355 is a welded bending load cell manufactured in stainless steel. It is hermetically sealed against moisture and has a polyurethane shielded cable, enabling it to function in demanding environments while maintaining full operating specifications.
With its low profile, high accuracy and hermetic sealing, the Model 355 load cell is ideal for applications such as low-profile platforms, weighing and packing machines, conversion of mechanical and varied other applications where sealed cells are required. For hazardous environments, this load cell is available with EEx ia IIC T6 level of approval as an option.
Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in the lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
Features
- Capacities: 5–500 kg
- Stainless steel construction
- OIML R60 and NTEP approved
- IP68 protection
Options
- EEx ia IIC T6 hazardous area approval
- FM and IECEx approvals available
| Parameter | Value | Unit | |||
|---|---|---|---|---|---|
| Rated capacity (kg) | 5, 10, 20, 30, 50, 100, 200, 250, 500 | kg | |||
| NTEP/oiml accuracy class | NTEP | Non-Approved | C3 | C4 | |
| Max. no. of intervals (n) | 4000 single | 1000 | 3000 | 4000 | |
| Rated output R.O | 2.00 (UR matched = 2.02) | mV/V | |||
| Rated output tolerance | 0.002 | ±%mV/V | |||
| Zero balance | 0.04 | ±%FSO | |||
| Ultimate over load | 300 | % of R.C | |||
| Excitation voltage | 10 | VDC or VAC RMS | |||
| Max. excitation voltage | 15 | VDC or VAC RMS | |||
| Input resistance | 380±10 | Ω | |||
| Output resistance | 355±5 | Ω | |||
| Insulation resistance | >2000 | MΩ | |||
| Environmental protection | IP68 | ||||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
applications
- Low-profile platforms
- Loss-in-weight feeders
- Marine and hybrid scales
- Belt weighers
- Demanding food industry environments
