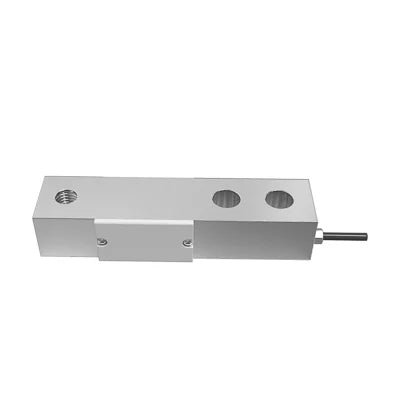

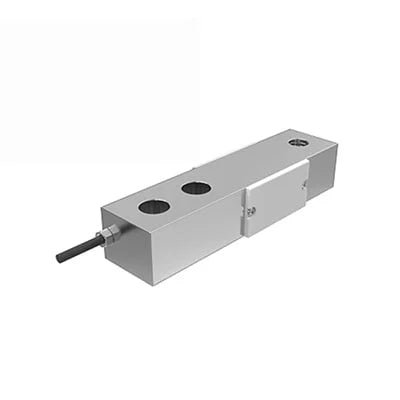

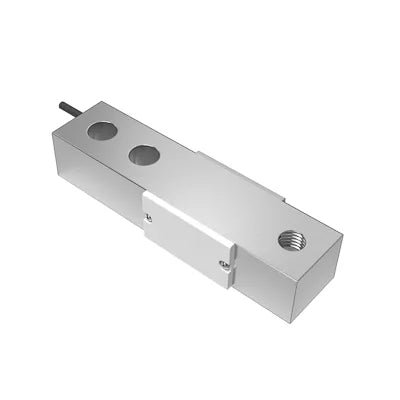

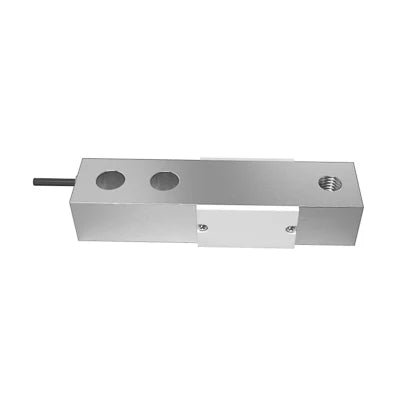

500 kg Shear Beam Load Cell – Model 65023 | High-Accuracy Sensortronics Load Cell
$259.28
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $254.28 |
| 11 - 15 | $10.00 | $249.28 |
| 16 - 20 | $15.00 | $244.28 |
Payment Methods:
Description
Reliable, Precision-Engineered Shear Beam Load Cell for Industrial Weighing
The 500 kg Shear Beam Load Cell (Model 65023) by Sensortronics delivers high-accuracy and long-term stability in platform and process weighing systems. This low-profile shear beam load cell is specifically engineered for platform scales, pallet scales, and industrial process weighing, where consistency and ruggedness are mission-critical.
Key Technical Features
- Capacity: 500 kg (available from 125 kg up to 10,000 kg)
- Design: Low-profile shear-beam for compact integration in scale bases
- Construction: High-quality alloy steel ensuring long-term strength and reliability
- Load Hole Options: Available in both “Thru” and “Threaded” configurations for versatile mounting
- Axial Load Performance: Engineered for low sensitivity to side or axial loads, maintaining superior accuracy
- Environmental Protection: IP67-rated, providing excellent resistance to dust and moisture
- Accuracy Class: Suitable for OIML-certified scale designs and process automation systems
- Manufacturer: Sensortronics – renowned for precision load measurement technology
Applications
- Industrial Platform Scales
- Pallet Weighing Systems
- Tank and Hopper Weighing
- Process Automation Weighing Equipment
- Conveyor Belt Weight Measurement
Why Choose the 500 kg Shear Beam Load Cell (Model 65023)?
With robust design, environmental durability, and precision performance, the Sensortronics 65023 series stands out as a reliable workhorse for industrial and commercial weighing environments. Whether it’s for heavy-duty manufacturing lines or precision packaging systems, this load cell ensures consistent, repeatable measurements that drive operational accuracy and efficiency.
For businesses operating in challenging conditions, the IP67 environmental code ensures the load cell remains sealed and protected, even in dusty or damp settings.
Smart Tip:
Looking for moisture-proof, high-durability load cells for industrial weighing?
Explore Tedea-Huntleigh’s 355 Welded Load Cell Series or Sensortronics’ advanced shear beam range for versatile options that match your application.
Description
Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-w.
It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.
Nickel plating and full environmental sealing assures long- term reliability. A stainless-steel option is available for the lb. versions for use in harsh or corrosive environments.
Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.
Features
- Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
- “Thru” or “threaded” load hole configurations
- Low sensitivity to axial loads
- Low-profile (ultra-low-profile available in 1000 to 2500 pound ranges)
- Sensorgage™ sealed to IP67 standards
- Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G
- Non- incendive ratings (without barriers)
- Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available
Options
- Ex ia IIC T4, Ex ia IIIC T135°C hazardous area approval
- Stainless-steel versions available
- 65059 TWA companion weighing assemblies available
- EDOC product appearance will differ from the photograph due to coating
| Parameter | Value | Unit | |||
|---|---|---|---|---|---|
| Rated capacity (kg) | 125, 250, 500, 750, 1000, 2000, 5000, 10000 | kg | |||
| Rated capacity (lbs) | 250, 500, 1k, 1.5k, 2k, 2.5k, 4k, 5k, 10k, 15k, 20k | lbs | |||
| NTEP/oiml accuracy class | NTEP III | NTEP IIIL | Standard | OIML R60 | |
| Max. no. of intervals (n) | 3000 single | 10000 multiple | — | 3000 | |
| Rated output R.O | 3 | mV/V | |||
| Rated output tolerance | 0.25 | ±%mV/V | |||
| Zero balance | 1 | ±%FSO | |||
| Non-repeatability | 0.01 | ±%FSO | |||
| Creep error | 0.025 | 0.03 | 0.03 | 0.017 | ±%FSO |
| Ultimate over load | 300 | % of R.C | |||
| Excitation voltage | 10 | VDC or VAC RMS | |||
| Max. excitation voltage | 15 | VDC or VAC RMS | |||
| Input resistance | 343–357 | Ω | |||
| Output resistance | 349–355 | Ω | |||
| Insulation resistance | >1000 | MΩ | |||
| Environmental protection | IP67 | ||||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
Applications
- Floor scales
- Tank weighing
- Bin and hopper weighing
