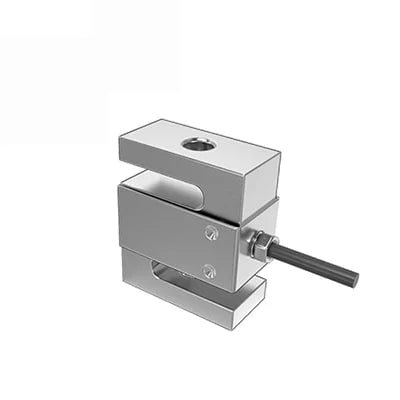

250kg Load Cell – 9363 S-Type Load Cell
$363.00
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $358.00 |
| 11 - 15 | $10.00 | $353.00 |
| 16 - 20 | $15.00 | $348.00 |
Payment Methods:
Description
Versatile and Durable Load Cell for Tension and Compression Applications
The 250kg Load Cell – Model 9363 S-Type from Revere is a stainless-steel multipurpose load cell designed for both tension and compression applications. Engineered for reliability and precision, this load cell delivers accurate, repeatable, and stable measurements, making it suitable for a wide range of industrial, commercial, and laboratory weighing systems.
Key Features & Benefits:
- Capacity: 250 kg (available in 50–10,000 kg / 50–20,000 lbs variants)
- Construction: Stainless steel for long-lasting durability and corrosion resistance
- Multipurpose Design: Ideal for both tension and compression applications
- Environmental Protection: IP67 rated – dust-tight and resistant to water immersion
- Precision Engineering: Ensures reliable measurements in demanding industrial or laboratory settings
Applications:
- Tension and compression testing
- Industrial weighing systems
- Laboratory and research applications
Smart Tip: The 9363 S-Type Load Cell is perfect for applications that demand a robust, versatile, and high-precision load cell capable of handling both tension and compression forces.
Description
Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression.
The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications.
Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area.
The product meets the stringent Weights and Measures requirements throughout Europe and the USA.
Features
- Capacities: 50 to 10,000 kg (50 to 20,000 lbs)
- Stainless-steel construction
- Suitable for compression and tension applications
- Trimmed output versions standard
- Sealing: IP67
- Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions
Options
- FM approved for use in potentially explosive atmospheres
| Parameter | Value | Unit | ||
|---|---|---|---|---|
| Rated capacity (kg) | 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 | kg | ||
| Rated capacity (lbs) | 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k | lbs | ||
| NTEP/oiml accuracy class | NTEP IIIL | Non-Approved | OIML C3 | |
| Max. no. of intervals (n) | 10000 | D3 | 3000 | |
| Rated output R.O | 3 | mV/V | ||
| Rated output tolerance | 0.0075 | ±%mV/V | ||
| Zero balance | 1 | ±%FSO | ||
| Non-repeatability | 0.0100 | 0.0100 | 0.0100 | ±%FSO |
| Creep error | — | ±%FSO | ||
| Ultimate over load | 250 | % of R.C | ||
| Excitation voltage | 5 to 12 | VDC or VAC RMS | ||
| Max. excitation voltage | 15 | VDC or VAC RMS | ||
| Input resistance | 390±15 | Ω | ||
| Output resistance | 350±3.5 | Ω | ||
| Insulation resistance | ≥5000 | MΩ | ||
| Environmental protection | IP67 | |||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
Applications
- Suspended hoppers
- Overhead track scales
- Force measurement
