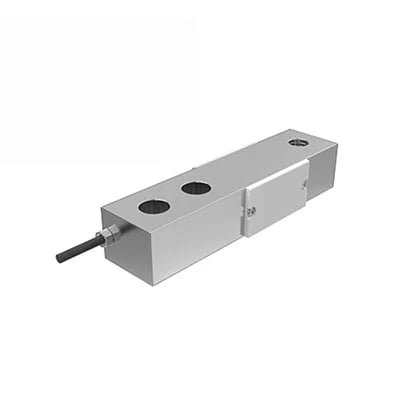

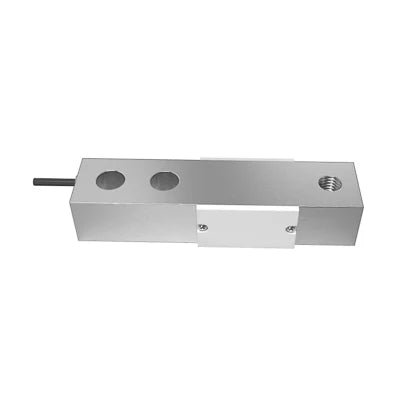

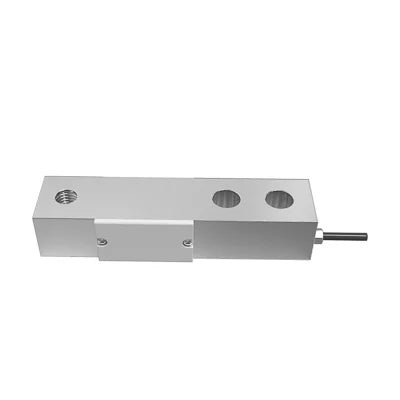

250 kg Shear Beam Load Cell | 65023 High-Accuracy Sensortronics Load Cell
$259.28
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $254.28 |
| 11 - 15 | $10.00 | $249.28 |
| 16 - 20 | $15.00 | $244.28 |
Payment Methods:
Description
Reliable, Low-Profile Load Cell for Precision Weighing Applications
The 250 kg Shear Beam Load Cell – Model 65023 from Sensortronics is a high-accuracy, low-profile load cell engineered for performance and reliability in demanding weighing systems. Designed for platform scales, pallet scales, and process-weighing applications, this model ensures precise, stable readings even under challenging industrial conditions.
Key Features & Technical Highlights
- Capacity: 250 kg (rated capacities available up to 10,000 kg / 20,000 lb)
- Type: Shear Beam Load Cell for industrial accuracy and durability
- Design Options: “Thru” or “Threaded” load-hole configurations for flexible mounting
- Construction: Rugged and low-profile design for compact installations
- Accuracy: Excellent repeatability with low sensitivity to axial loads
- Environmental Protection: IP67 rating ensures resistance to moisture, dust, and tough conditions
- Manufacturer: Sensortronics
- SKU: 65023-004E-A5-01F
Description
Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-w.
It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.
Nickel plating and full environmental sealing assures long- term reliability. A stainless-steel option is available for the lb. versions for use in harsh or corrosive environments.
Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.
Features
- Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
- “Thru” or “threaded” load hole configurations
- Low sensitivity to axial loads
- Low-profile (ultra-low-profile available in 1000 to 2500 pound ranges)
- Sensorgage™ sealed to IP67 standards
- Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G
- Non- incendive ratings (without barriers)
- Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available
Options
- Ex ia IIC T4, Ex ia IIIC T135°C hazardous area approval
- Stainless-steel versions available
- 65059 TWA companion weighing assemblies available
- EDOC product appearance will differ from the photograph due to coating
| Parameter | Value | Unit | |||
|---|---|---|---|---|---|
| Rated capacity (kg) | 125, 250, 500, 750, 1000, 2000, 5000, 10000 | kg | |||
| Rated capacity (lbs) | 250, 500, 1k, 1.5k, 2k, 2.5k, 4k, 5k, 10k, 15k, 20k | lbs | |||
| NTEP/oiml accuracy class | NTEP III | NTEP IIIL | Standard | OIML R60 | |
| Max. no. of intervals (n) | 3000 single | 10000 multiple | — | 3000 | |
| Rated output R.O | 3 | mV/V | |||
| Rated output tolerance | 0.25 | ±%mV/V | |||
| Zero balance | 1 | ±%FSO | |||
| Non-repeatability | 0.01 | ±%FSO | |||
| Creep error | 0.025 | 0.03 | 0.03 | 0.017 | ±%FSO |
| Ultimate over load | 300 | % of R.C | |||
| Excitation voltage | 10 | VDC or VAC RMS | |||
| Max. excitation voltage | 15 | VDC or VAC RMS | |||
| Input resistance | 343–357 | Ω | |||
| Output resistance | 349–355 | Ω | |||
| Insulation resistance | >1000 | MΩ | |||
| Environmental protection | IP67 | ||||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
Applications
- Floor scales
- Tank weighing
- Bin and hopper weighing
Performance Advantages
- Enhanced stability under varying loads
- Reduced measurement errors caused by side forces
- Ideal for precision-critical weighing systems
- Reliable operation in manufacturing, logistics, and processing environments
Applications
- Platform and floor scales
- Pallet and hopper weighing systems
- Industrial process and batching systems
- Conveyor and automated material handling setups
Technical Specifications
- Material: High-strength alloy steel
- Environmental Code: IP67 (moisture and dust-resistant)
- Approval / Safety Code: Not ATEX/FM approved
- Output: Consistent performance for long-term industrial use
Smart Tip: If your weighing system operates in moderately harsh environments, the Sensortronics 65023 250 kg Shear Beam Load Cell is your go-to choice for dependable, precision measurement with minimal maintenance requirements.
