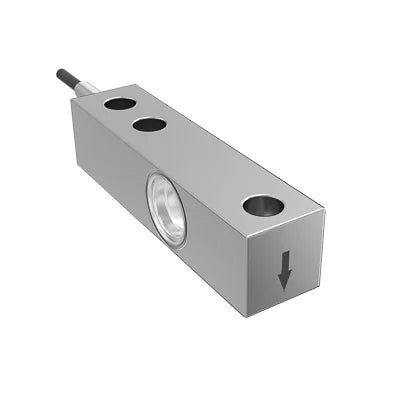

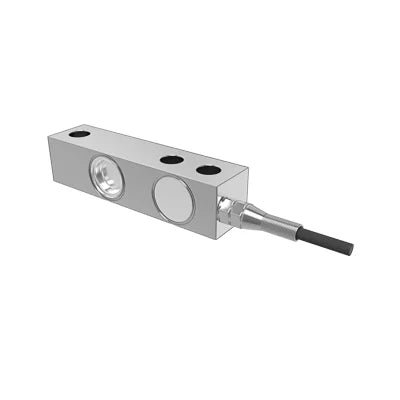

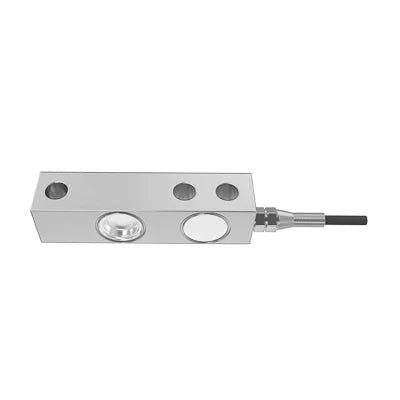

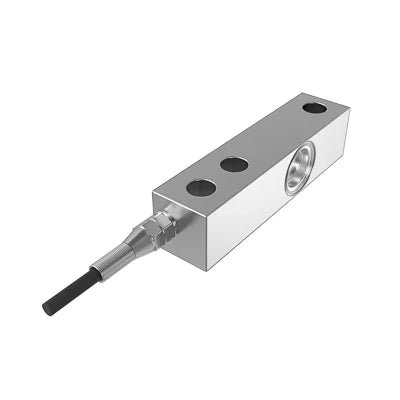

2000kg Load Cell – SQB Single-Ended Load Beam
$388.93
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $383.93 |
| 11 - 15 | $10.00 | $378.93 |
| 16 - 20 | $15.00 | $373.93 |
Payment Methods:
Description
Reliable, High-Capacity Load Cell for Multi-Cell Weighing Applications
The 2000kg Load Cell – SQB Single-Ended Load Beam from Celtron is a robust single-ended shear beam load cell engineered for multi-cell applications such as low-profile platform scales and small tank weighing systems. Designed to provide precise, stable, and repeatable measurements, this load cell is ideal for industrial setups requiring high side-load tolerance and durability.
Key Features & Benefits:
- Capacity: 2000 kg (available in 250–5000 kg / 500–20,000 lbs variants)
- Construction: Electroless nickel-plated alloy tool steel for enhanced durability and corrosion resistance
- High Side-Load Tolerance: Maintains accuracy even under uneven or off-center loading
- Versatile Multi-Cell Applications: Ideal for platform and tank scale setups
- Safety & Approval: FM approved for industrial safety standards
Applications:
- Low-profile platform scales
- Small tank weighing systems
- Multi-cell industrial weighing applications
Smart Tip: The SQB load beam is perfect for industrial applications where high accuracy and durability are required, even under side-loading conditions.
Description
Model SQB is a single-ended shear beam load cell designed for multiple cell applications, such as low profile platform or small tank scales, when used with proper mounting accessories.
It is insensitive to side loading and capable of reversed loading. Models SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage.
Features
- Capacities: 500 to 20k lbs., 250 to 5000 kg
- High side-load tolerance
- Electroless nickel-plated-alloy tool steel
- NTEP Class III 5000M for SQB, SQB-F and SQB-SS available from 1k to 10k lbs.
- SQB-SS stainless-steel construction
Options
- FM approval
- EDOC product appearance will differ from the photograph due to coating
| Parameter | Value | Unit | |
|---|---|---|---|
| Rated capacity (kg) | 250, 500, 1000, 1500, 2000, 2500, 5000 | kg | |
| Rated capacity (lbs) | 500, 1k, 2k, 2.5k, 3k, 4k, 5kSE, 5k, 10k, 15k, 20k | lbs | |
| NTEP/oiml accuracy class | NTEP III | Non-Approved | |
| Max. no. of intervals (n) | 3000 single, 5000 multiple | 1000 | |
| Rated output R.O | 3 | mV/V | |
| Rated output tolerance | 0.25 | ±%mV/V | |
| Zero balance | 1 | ±%FSO | |
| Non-repeatability | 0.020 | 0.020 | ±%FSO |
| Creep error | 0.025 | 0.030 | ±%FSO |
| Ultimate over load | 300 | % of R.C | |
| Excitation voltage | 10 | VDC or VAC RMS | |
| Max. excitation voltage | 15 | VDC or VAC RMS | |
| Input resistance | 385±5 | Ω | |
| Output resistance | 350±3 | Ω | |
| Insulation resistance | >5000 | MΩ | |
| Environmental protection | IP67 | ||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
Applications
- Truck/rail scales
- Silo/hopper/tank weighing
- Platform scales (multiple load cells)
- Pallet truck scales
- Packaging machines
