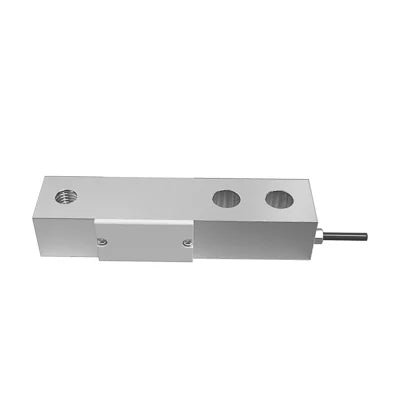

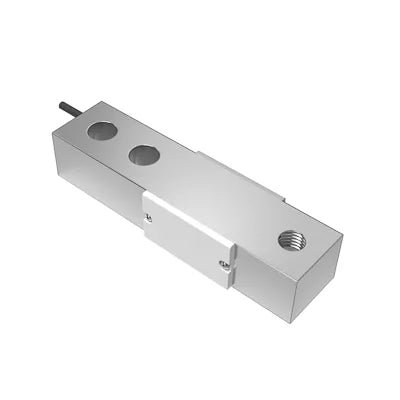

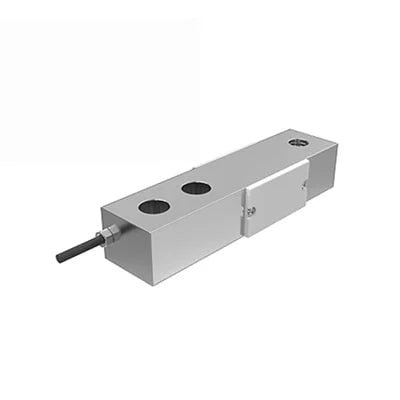

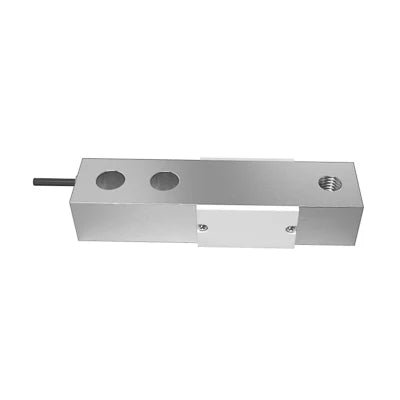

2000 kg Shear Beam Load Cell | High-Precision Sensortronics Load Cell
$259.28
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $254.28 |
| 11 - 15 | $10.00 | $249.28 |
| 16 - 20 | $15.00 | $244.28 |
Payment Methods:
Description
Industrial-Grade Accuracy for Platform and Process Weighing
The 2000 kg Shear Beam Load Cell (Model 65023) by Sensortronics delivers uncompromising accuracy and durability for platform scales, pallet scales, and process weighing systems. Designed with a low-profile structure and robust alloy steel build, it ensures precise and consistent performance in heavy-duty industrial environments.
Technical Specifications
Model: 65023
Capacity: 2000 kg (available range: 125 kg to 10,000 kg)
Type: Shear Beam Load Cell
Material: Alloy Steel
Finish: Electroless Nickel-Plated for corrosion resistance
Mounting Options: “Thru” or “Threaded” load hole configurations
Axial Load Sensitivity: Low – ensures stable performance under lateral forces
Environmental Protection: IP67 rated – resistant to dust and water ingress
Applications: Platform weighing, pallet scales, hopper and tank weighing, automated weighing processes
Brand: Sensortronics
SKU: 65023-002T-C3-01F
Availability: In Stock
Why Choose the 2000 kg Shear Beam Load Cell?
Engineered for high-precision industrial applications, the Sensortronics 65023 provides reliable output under challenging load conditions. Its low-profile design and robust shear-beam construction ensure superior load stability and long-term repeatability. Whether used in batching systems or platform scales, this load cell offers dependable accuracy with minimal maintenance.
Key Benefits
Exceptional weighing precision up to 2000 kg
Low sensitivity to off-axis loading for consistent readings
Suitable for static and dynamic weighing systems
Easy integration with existing scale platforms
Built for demanding industrial and commercial environments
Smart Tip
For complementary load cell models and accessories, explore
Load Cell Solutions Australia and
Load Cell Shop — both trusted DoFollow resources for advanced weighing technologies.
Description
Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-w.
It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.
Nickel plating and full environmental sealing assures long- term reliability. A stainless-steel option is available for the lb. versions for use in harsh or corrosive environments.
Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.
Features
- Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
- “Thru” or “threaded” load hole configurations
- Low sensitivity to axial loads
- Low-profile (ultra-low-profile available in 1000 to 2500 pound ranges)
- Sensorgage™ sealed to IP67 standards
- Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G
- Non- incendive ratings (without barriers)
- Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available
Options
- Ex ia IIC T4, Ex ia IIIC T135°C hazardous area approval
- Stainless-steel versions available
- 65059 TWA companion weighing assemblies available
- EDOC product appearance will differ from the photograph due to coating
| Parameter | Value | Unit | |||
|---|---|---|---|---|---|
| Rated capacity (kg) | 125, 250, 500, 750, 1000, 2000, 5000, 10000 | kg | |||
| Rated capacity (lbs) | 250, 500, 1k, 1.5k, 2k, 2.5k, 4k, 5k, 10k, 15k, 20k | lbs | |||
| NTEP/oiml accuracy class | NTEP III | NTEP IIIL | Standard | OIML R60 | |
| Max. no. of intervals (n) | 3000 single | 10000 multiple | — | 3000 | |
| Rated output R.O | 3 | mV/V | |||
| Rated output tolerance | 0.25 | ±%mV/V | |||
| Zero balance | 1 | ±%FSO | |||
| Non-repeatability | 0.01 | ±%FSO | |||
| Creep error | 0.025 | 0.03 | 0.03 | 0.017 | ±%FSO |
| Ultimate over load | 300 | % of R.C | |||
| Excitation voltage | 10 | VDC or VAC RMS | |||
| Max. excitation voltage | 15 | VDC or VAC RMS | |||
| Input resistance | 343–357 | Ω | |||
| Output resistance | 349–355 | Ω | |||
| Insulation resistance | >1000 | MΩ | |||
| Environmental protection | IP67 | ||||
- FSO – Full Scale Output
- All specifications subjects to change whithout notice.
Applications
- Floor scales
- Tank weighing
- Bin and hopper weighing
