Model DLB Double-Ended Link Shear Beam
Shop Celtron for truck/rail scales (TRS), silo/hopper/tank weighing solutions, forklift scales (FL), and double-ended link shear beam (DELSB) and double-linked shear beam (DLSB) designs, offering accurate, high-performance measurements for industrial applications.
$332.34
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $327.34 |
| 11 - 15 | $10.00 | $322.34 |
| 16 - 20 | $15.00 | $317.34 |
Payment Methods:
Description

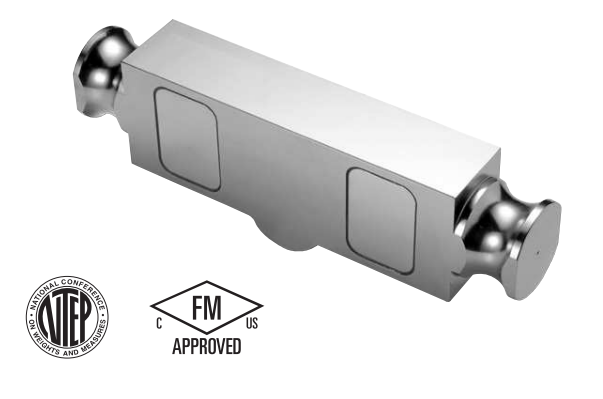

Title :- Model DLB Double-Ended Link Shear Beam
Brand :- Celtron
DESCRIPTION
The Model DLB is designed to be center-mounted with double-linked loading. This design provides free movement in all horizontal directions virtually eliminating binding or friction points. The Shear Beam design gives excellent performance for high capacity loading.
The Model DLB is constructed of alloy steel and is fully potted and sealed with special compounds to IP67, providing excellent protection against moisture
and humidity.
FEATURES
• Capacities 25k–125k lbs
• Center-mounted with double-linked shear beam design
• Free of horizontal movement
• Insensitive to side load
• Electroless nickel-plated alloy tool steel
• NTEP Class lllL 10000 for whole series
• Optional
– Surge protection optional for 60k lbs
– FM approval available
APPLICATIONS
• Truck/rail scales
• Silo/hopper/tank weighing
• Fork-lift scales
