Model 9123 Single-Ended Beam Load Cell
Explore the Model 9123 Single-Ended Beam Load Cell by Revere. Available in 500–5000 kg and 1k–20k lbs capacities, with OIML R-60 and NTEP III certifications. Stainless steel, low profile, IP67 rated, perfect for pallet truck, tank, and silo weighing.
Price range: $64.64 through $181.54
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model 9123 Single-Ended Beam Load Cell
Brand :- Revere
DESCRIPTION

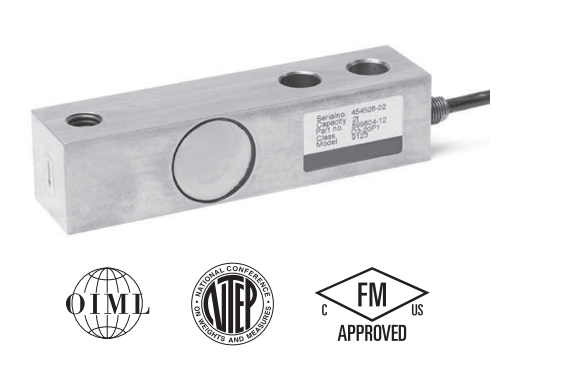

Model 9123 is a low-profile single-ended shear beam type load cell and is made from stainless steel.
This load cell is suitable for small and medium platform scales, overhead track scales, hopper scales, and process weighing applications.
Reliable sealing is ensured by the proprietary TRANSEAL
potting compound and additional mechanical protection
of the strain gage area.
Ease of installation is made possible through the use of a partially-threaded hole to accept levelling feet, load buttons, or loading cables.
FEATURES
• Capacities: 500–5000 kg, 1k–20k lbs.
• Low-profile construction
• Certified to OIML R-60, 4000d and NTEP III,
5000 divisions
• Sealing: IP67 (DIN 40.050)
• Stainless-steel construction
• Threaded load hole
• Optional
– FM certified for use in potentially explosive
atmospheres
APPLICATIONS
• Low profile platforms
• Pallet truck weighing
• Tank and silo weighing
