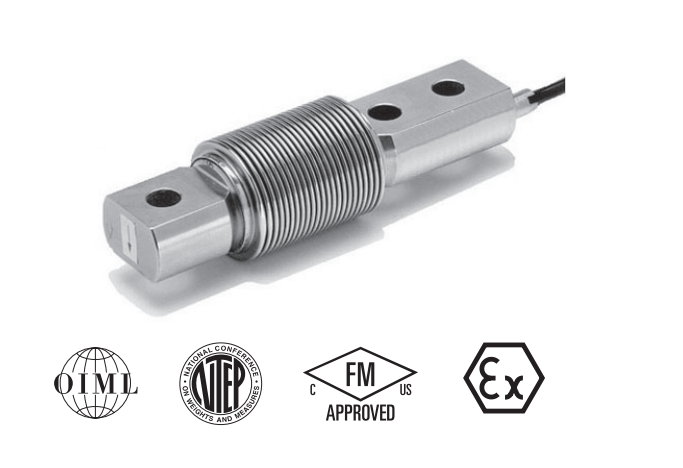

Model 9102 Single-Ended Beam Load Cell
The Tedea-Huntleigh Model 9102 single-ended beam load cell is hermetically sealed (IP66, IP68) and OIML, NTEP certified, ensuring high-accuracy industrial weighing. Ideal for platform scales, silo/hopper weighing, belt scales, and food or chemical processing, with ATEX & FM explosion-proof approval for hazardous areas.
$184.95
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $179.95 |
| 11 - 15 | $10.00 | $174.95 |
| 16 - 20 | $15.00 | $169.95 |
Payment Methods:
Description
Title :- Model 9102 Single-Ended Beam Load CellÂ
Brand :- Tedea-Huntleigh
DESCRIPTION
The Model 9102 is a stainless steel single-ended beam type load cell.
This product is suitable for small and medium platform scales, overhead track scales and process weighing. The fully welded construction and water block cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical and allied process industries.
FEATURES
• Capacities: 200–2500 lbs.
• Low profile, stainless steel construction
• Hermetically sealed, IP66 and IP68
• Certified to OIML R-60, 5000d and NTEP class III, 5000
divisions
• Current calibration output (SC version) ensures easy
and accurate parallel connection of multiple load cells
• Interchangeable with existing Model 5102
• Optional
– ATEX and FM certified versions are available for use
in potentially explosive atmospheres
APPLICATIONS
• Platform scales
• Belt scales
• Silo/hopper weighing
• Overhead track scales
