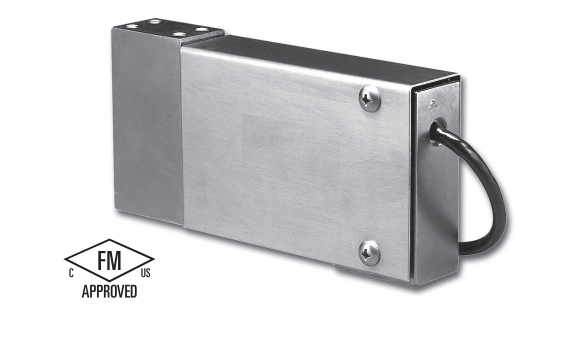

Model 60048 Low Profile Platform Cell
The Model 60048 load cell by Sensortronics is a low-profile, single-point platform load cell ideal for bench scales, checkweighers, and conveyor weighing systems. Available in alloy steel and stainless steel, this IP67-rated, Factory Mutual (FM)-approved sensor offers high-precision moment compensation for off-center loading stability, ensuring reliable performance in harsh and hazardous environments.
$214.78
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $209.78 |
| 11 - 15 | $10.00 | $204.78 |
| 16 - 20 | $15.00 | $199.78 |
Payment Methods:
Description
Title :- Model 60048 Low Profile Platform Cell
Brand :- Sensortronics
DESCRIPTION
60048 is a high precision, alloy steel, stainless steel, single point platform load cell. The product’s availability in capacities ranging from 25 to 1000 lbs. makes it ideal for many low to mid range capacity weighing applications. The load cell is most commonly used in platform scales, but can be adapted for use in many process weighing applications. The stainless steel construction and IP67 sealing make this load cell ideal for demanding environment applications.
The product is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments.
FEATURES
• Rated capacities of 25 to 1000 pounds
• Constructed of alloy steel, stainless steel
• Moment-compensated design for minimal sensitivity
to moments induced by off-center loading
• Exceeds NIST H-44 requirements
• Provides optimum protection under adverse
loading conditions
• Sensorgage™ sealed to IP67 standards
• Factory Mutual System Approved for Classes I, II, III;
Divisions 1 and 2; Groups A through G.
• Non-incendive ratings (without barriers)
APPLICATIONS
• Single-point platform scales
• Belt conveyor scales
• Bench and counting scales
• Checkweighing scales
• Hopper scales and netweighing
