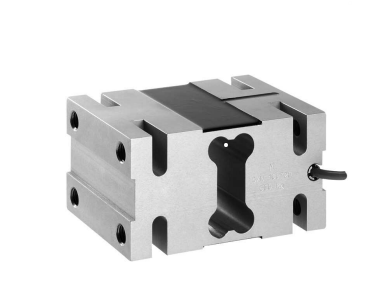

Model 1330 Aluminum Single-Point Load Cell
Discover the Tedea-Huntleigh Model 1330 load cell, a high-capacity aluminum single-point sensor for 800 × 800 mm platform scales. IP66-rated, OIML R60-certified, ideal for floor scales, baggage weighing, checkweighing, and industrial environments.
$165.11
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $160.11 |
| 11 - 15 | $10.00 | $155.11 |
| 16 - 20 | $15.00 | $150.11 |
Payment Methods:
Description
Title :- Model 1330 Aluminum Single-Point Load Cell
Brand :- Tedea-Huntleigh
DESCRIPTION
The Model 1330 is a high capacity single-point load cell, designed for direct mounting of low profile high capacity weighing platforms up to 800 x 800 mm. The large platform size simplifies the construction of floor scales, baggage scales, hanging scales and other types
of weighing machines.
A special humidity resistant protective coating assures long-term reliability. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
FEATURES
• Capacities 500–1000 kg
• Aluminum construction
• Single-point 800 x 800 mm platform
• Certified to OIML R60 3000d
• IP66 protection
• Available with metric threads
APPLICATIONS
• Large platform scales
• Hanging scales
• Check weighing
