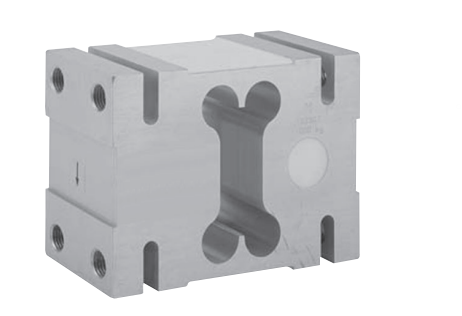

Model 1320 High Capacity Single-Point Load Cell
The Model 1320 load cell by Tedea-Huntleigh is a high-capacity, single-point aluminum load cell designed for large platform scales, floor scales, and checkweighing machines. OIML and NTEP approved, this IP66-rated industrial weighing sensor ensures high precision with corner error compensation. Ideal for commercial and industrial applications, it is also FM and ATEX-certified for hazardous environments.
Price range: $228.65 through $514.12
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model 1320 High Capacity Single-Point Load Cell
Brand :- Tedea-Huntleigh
DESCRIPTION
Model 1320 is a high-capacity single-point load cell, designed for direct mounting of low profile, high capacity weighing platforms up to 1200 × 1200 mm.
Its large platform size simplifies the construction of floor scales, weigh bars, hanging scales and other types of weighing machines with a capacity up to 2000 kg. All load cells are individually adjusted to eliminate corner errors, tested and calibrated to meet OIML specifications.
A special humidity-resistant coating assures long-term reliability. The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
FEATURES
• Capacities: 1000–2000 kg
• Aluminum construction
• Single-point 1200 × 1200 mm platform
• OIML R60 and NTEP approved
• IP66 protection
• Available with metric threads
• Optional
– FM Approval, ATEX, IECEx and UKCA
certifications available.
APPLICATIONS
• Very large platform scales
• Hanging scales
• Check weighing
