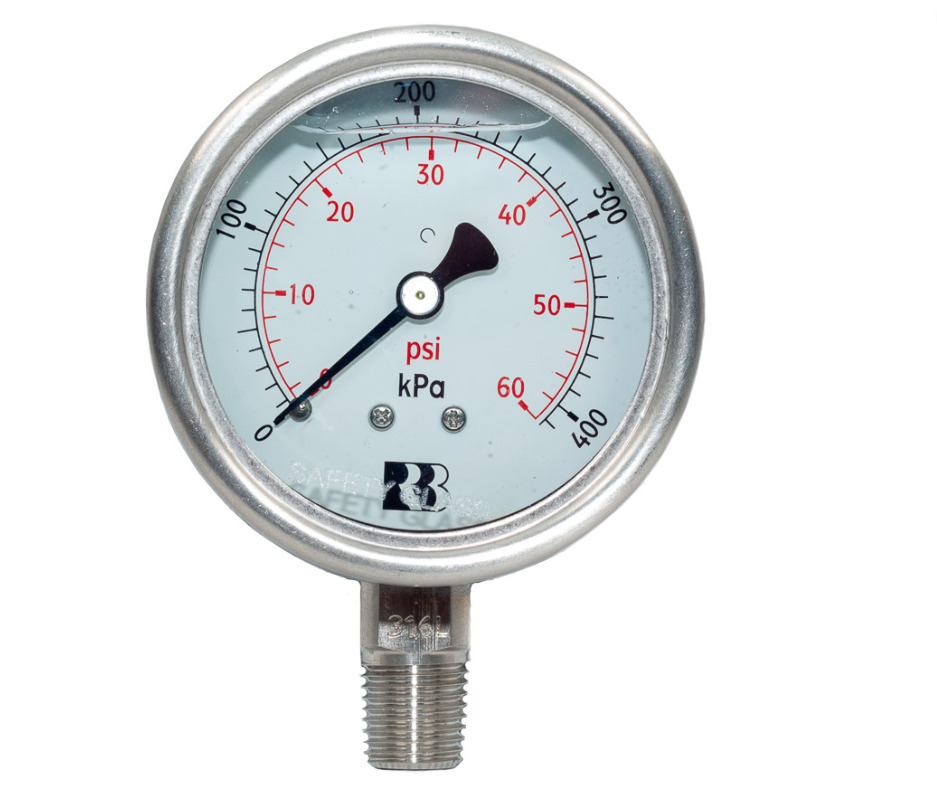

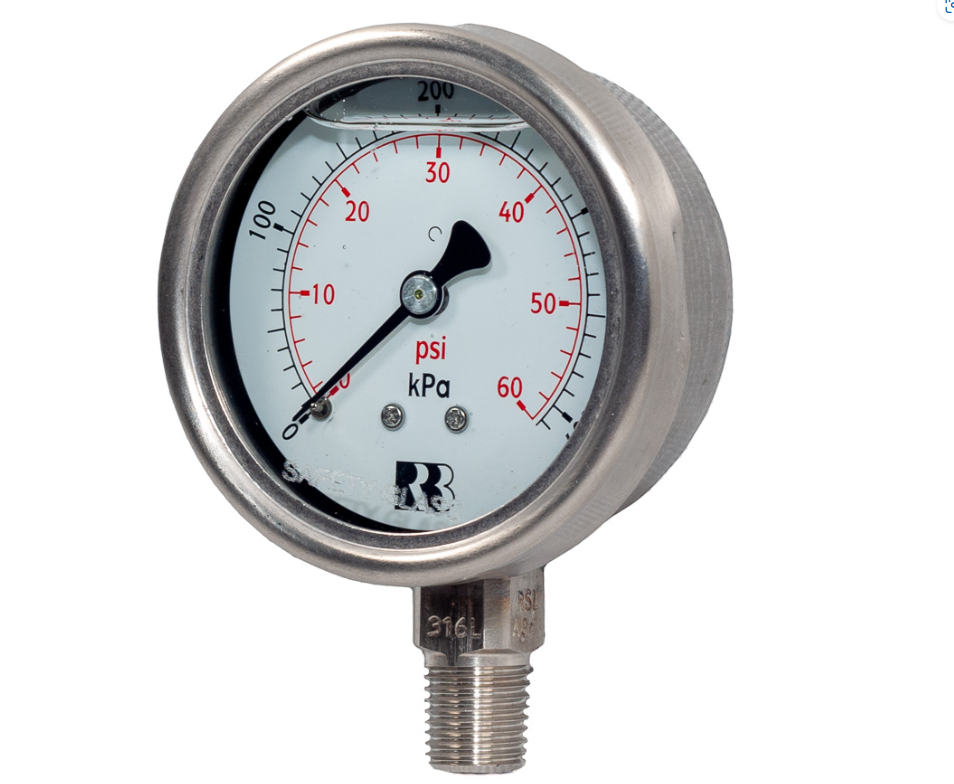

AD-D-2 (63mm Stainless Steel Pressure Gauge, lower mount)
Discover the AD-D-2 pressure gauge with a 63mm dial, 304 stainless steel case, and 316L bourdon tube. Featuring a dual scale (kPa/psi), NPT connection, shatterproof safety glass, and ±1.6% accuracy, ideal for high-pressure industrial applications and process control.
$0.00
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $0.00 |
| 11 - 15 | $10.00 | $0.00 |
| 16 - 20 | $15.00 | $0.00 |
Payment Methods:
Description
The AD-D-2 Pressure Gauge features a 63mm dial with a 304 stainless steel case, 316 stainless steel bourdon tube and connection, and a glass lens. It has a dual scale (kPa/psi) and a ¼” NPT lower mount. The accuracy is ±1.6% of full scale, and it is supplied dry (liquid filling is available upon request).
Available pressure ranges start from -100/0 kPa to 0/100,000 kPa (refer to the data sheet for all available ranges).
Optional features include back flange, front flange, and liquid filling.
| Brand | Ross Brown |
| Model | P252-2 / AD-D-2 |
| Type | Pressure Gauge |
| Working Temperature | Up to 60 Degree C (use pigtail for higher temps) |
| Dial Size | 63mm |
| Dial Label | Black Print (kPa), Red Print (PSI) on White Background |
| Ranges | -100-0kPa to 0-160,000kPa |
| Over Range Protection | 125% of full scale up to 10,000 kPa 115% of full scale above 10,000 up to 60,000 kPa 110% of full scale above 60,000 up to 100,000 kPa |
| Connection | 1/4″ NPT (Lower Mount) |
| Accuracy | +/- 1.6% |
| Case & Bezel | 304 Stainless Steel |
| Connection | 316 Stainless Steel |
| Window | Shatter Proof Safety Glass |
